4040×1,5 mm, 2,5 mm aluminium, 0,8 mm stainless steel, with manual depth stop 750mm operated from front, with electrical position indicator BV, with measuring plates screwed with 10mm graduation, with pneu. tilting table to the front, with foot switch, compressor for compressed air must be available
Machine with slight signs of use, machine has been repaired, checked and cleaned by a specialist and is fully functional. Test run was carried out.
Total power requirement: 3 kW
Machine weight: 2700 kg
Space requirement: 4394 x 2010 x 1450 mm
with cutting gap adjustment:
supply voltage: 400 V
with hold-down device:
connected load: 32 A
Backgauge adjustable: 0 – 750 mm
The advertisement was translated automatically and some translation errors may have occurred.

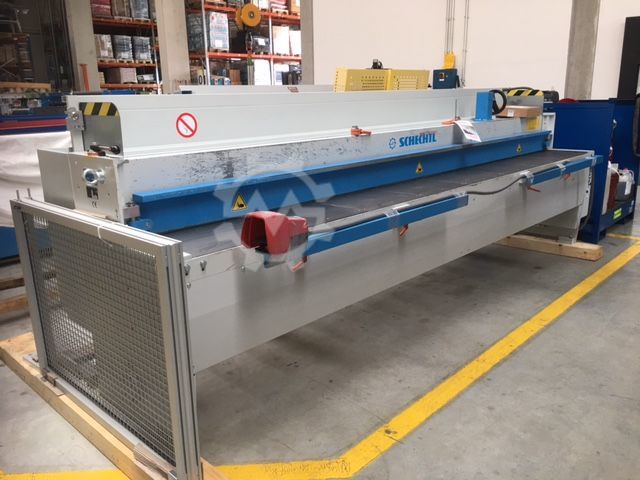

|Machine type||Motor plate shear|
|Model||MTB 400 BV|
|Year of manufacture||2020|
Price and Location
|Location||Hohenbrunn , Germany|
