SCHIESS Aschersleben HORIMILL 100 Horizontal Machining Centre

Posted By :
Comments : 0

X – axis 1700 mm
Y – axis 1400 mm
Z – axis 1500 mm
B – axis 150 rpm
Be2j7fp0hn
no.of pallets 2
pallet size 1000 x 1000 mm
max. load on table 3000 KG
spindle cone 100 HSK
spindle speed range 12.000 rpm
spindle drive 100% 48 KW
torque 300 Nm
rapid travel 40 m/min
no.of tools in magazin 60
tool diameter 125 / 275 mm
max. tool length 600 mm
tool weight 35 kg
tool changing time 3,5 sec
total power requirement 120 kW
floor space required 9,0 x 5,0 x 4,5 m
machine weight 45 to.
SIEMENS 840 DE
60 – ATC

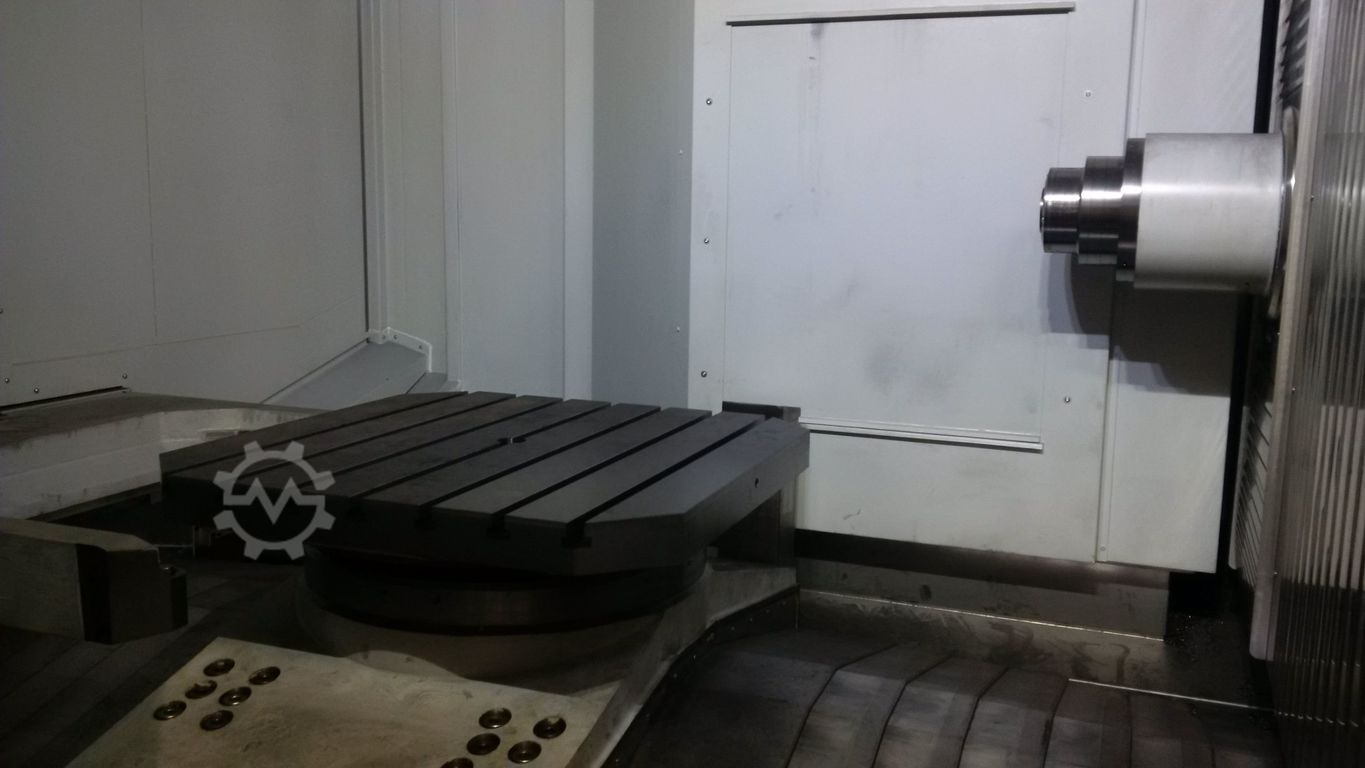

NC – rotary table with TORQUE-drive
2 – APC
Cooling through spindle

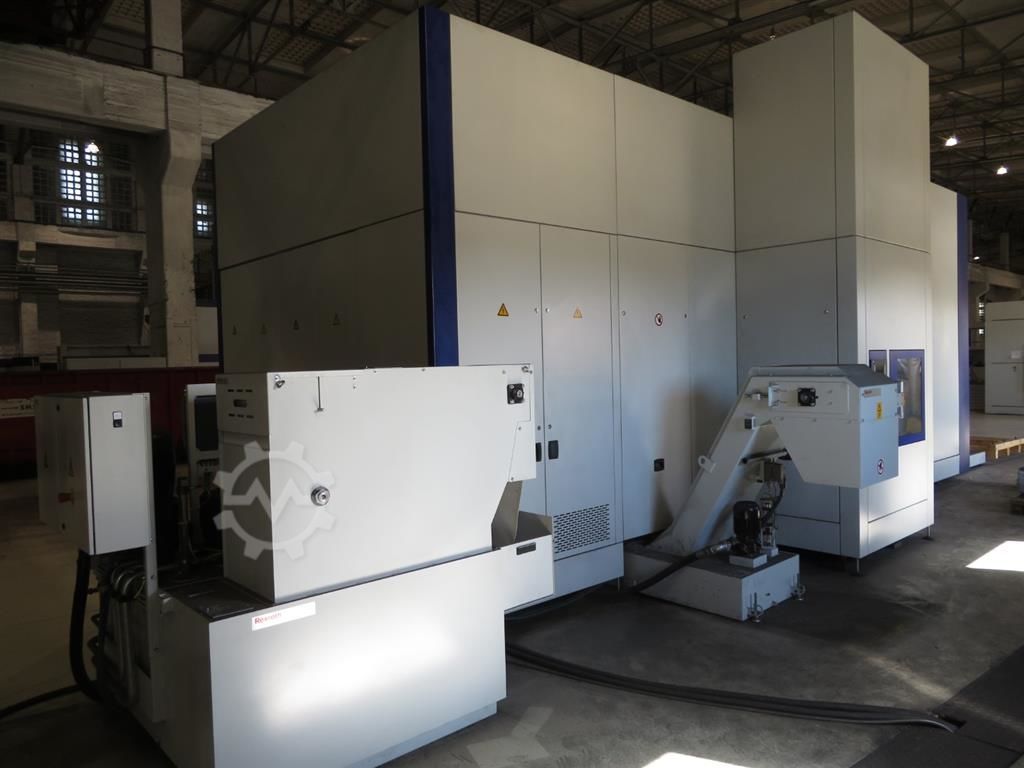

Chip conveyor
Machine had been under power for acceptance and then was disassembled again. Condition is new!
Machine is dismanteld.

Machine Data

Machine IDWM228033
SCHIESS-Aschersleben HORIMILL 100
Machine typeHorizontal Machining Centre
ManufacturerSCHIESS-Aschersleben
ModelHORIMILL 100
Year of manufacture2018
Conditionas good as new (ex-display)

Price and Location

LocationEngelskirchen , Germany
