SCHIESS FB 180 CNC Horisontal borer CNC
Comments : 0

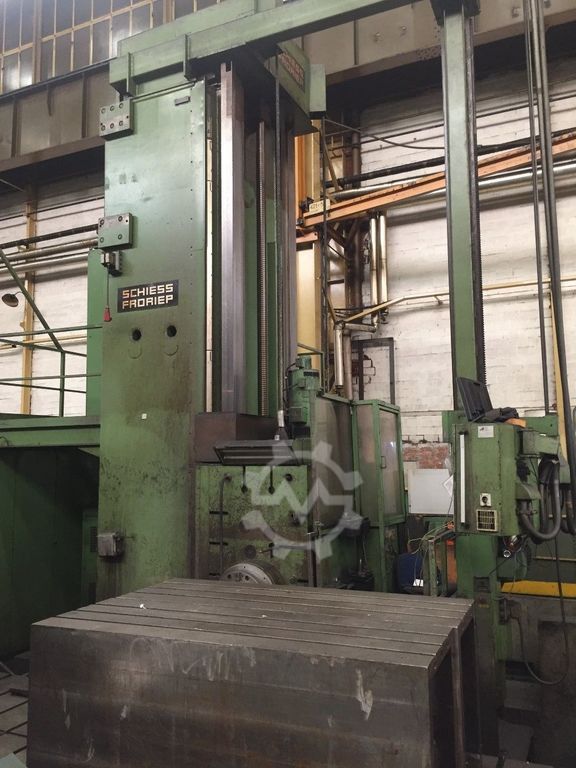

SCHIESS HBM Horizontal milling boring machine CNC
YOM 1980
X – travel 5900 mm
Y – travel 3400 mm
Z – travel 1350 mm
W—travel 900 mm (together with z or with milling head)
Spindle diameter 180 mm
Table 2500×2000 mm, load 30 tons, for positioning
Floor plates for fixation of workpieces
D90qwnnfq
Controls CNC NUM with side PC for files uploading

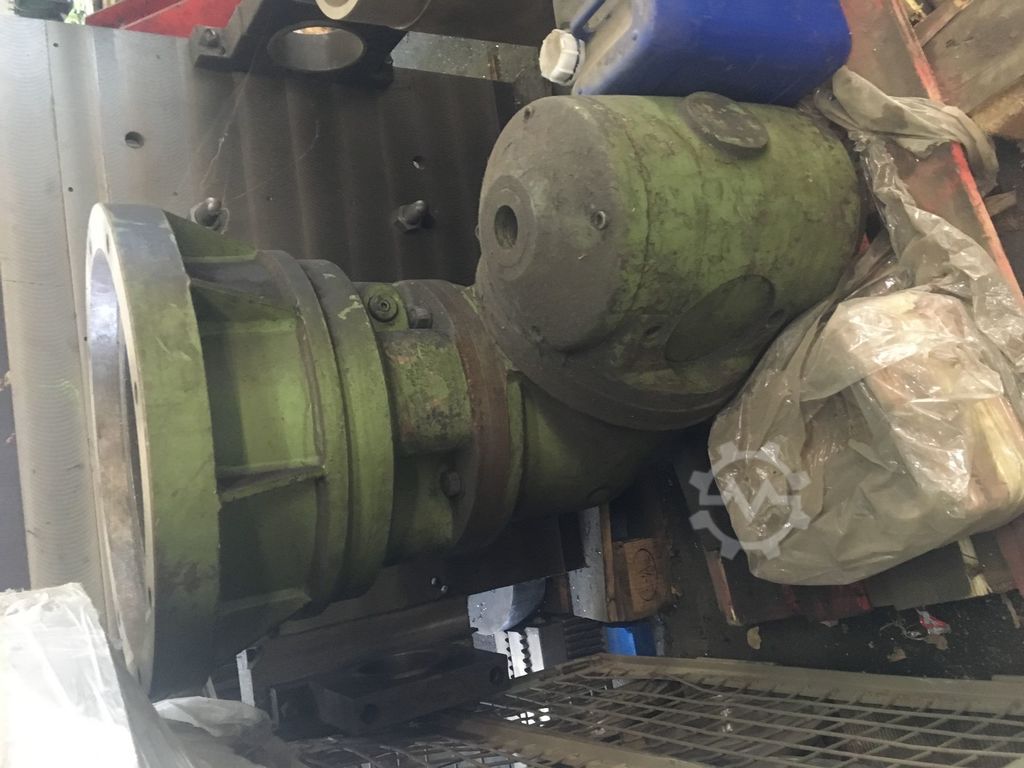

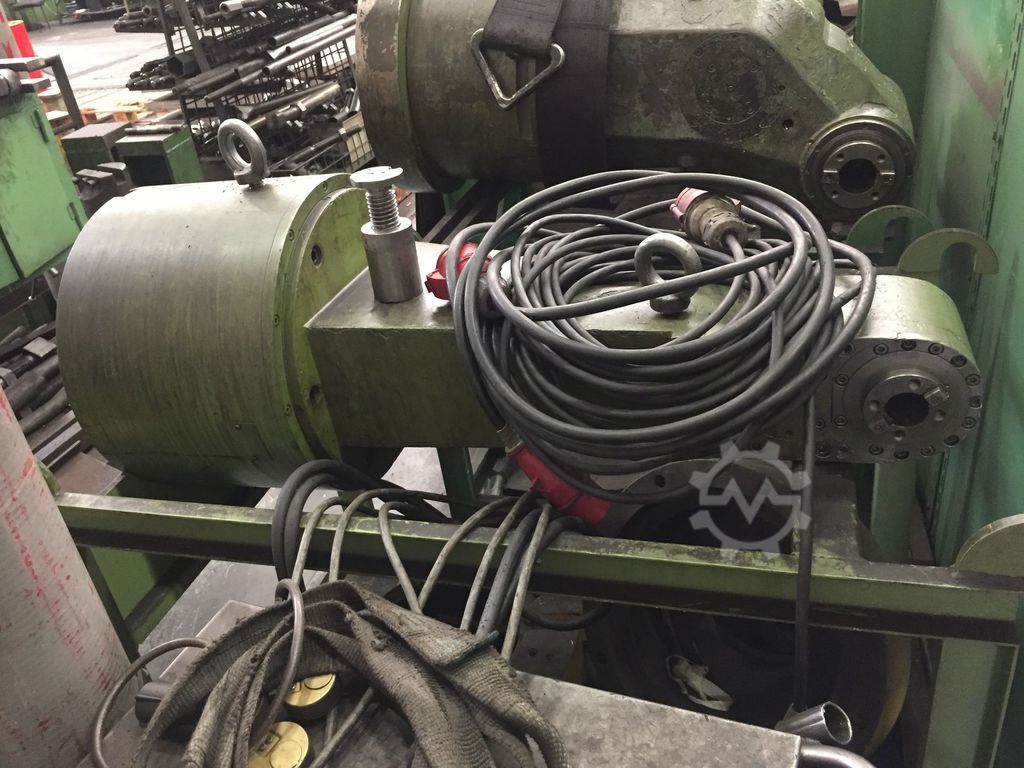

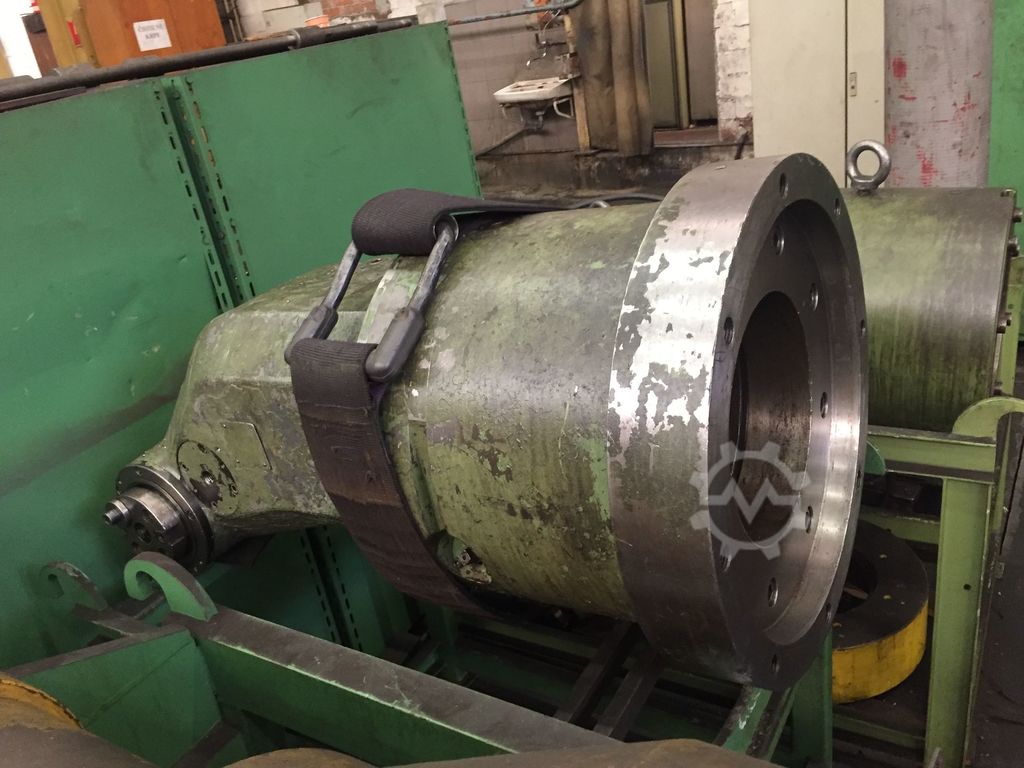

Angle head extended ISO 40
Angle head extended ISO 50
Universal angle head ISO 100

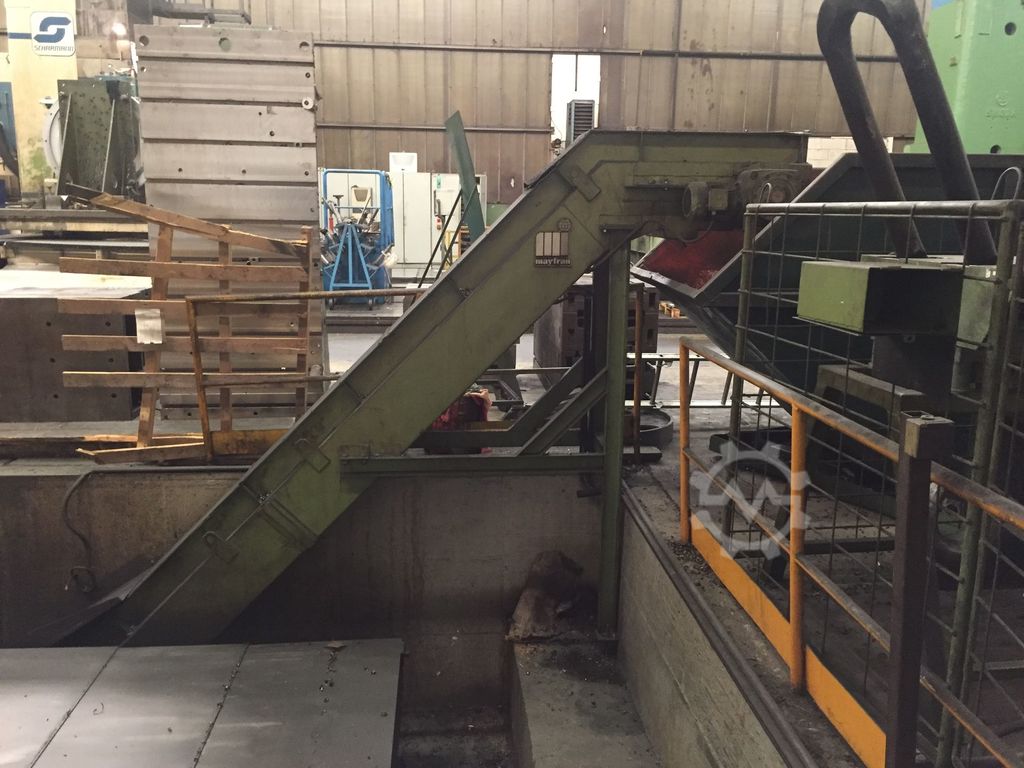

Chips conveyor
Overall dimensions 13mx11m, floorplates 10 meters, height 2+5 meters, spindle 180 mm
Total weight of machine 96 tons, can be transported with 5 trucks
Machine Data | |||||||||||||||
Machine ID | WM232175 | ||||||||||||||
Machine type | Horisontal borer CNC | ||||||||||||||
Manufacturer | SCHIESS | ||||||||||||||
Model | FB 180 CNC | ||||||||||||||
Year of manufacture | 1980 | ||||||||||||||
Condition | excellent (used) | Price and Location | |||||||||||||
Location | Ljubljana , Slovenia | ||||||||||||||
