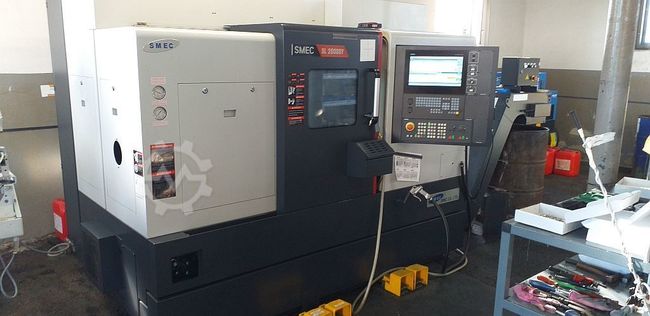

SMEC SL2000 SY Cnc turning milling center

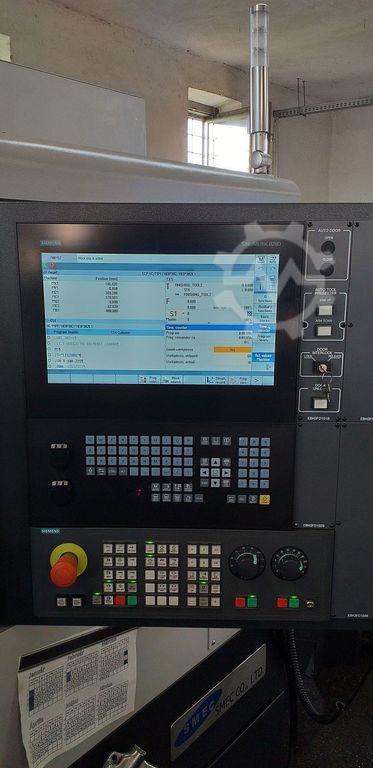

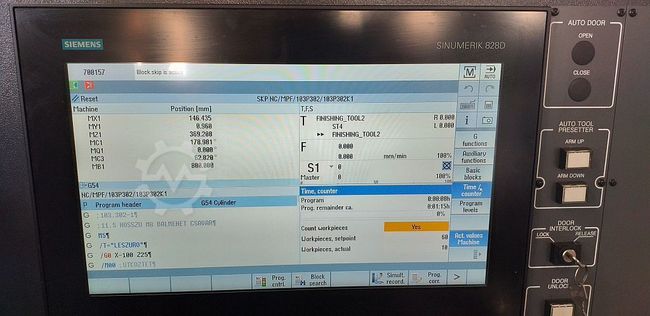

Control SIEMENS S828D
Swing over bed 650 mm
Turning dia 395 mm
Tunrning length 490 mm
Max bar dia in main spindle D52 mm
Max bar dia in sub spindle D36 mm
Main spindle speed 6000 rpm
Sub spindle speed 6000 rpm
Main spindle power 11/18,5 kW
Sub spindle power 5,5/9 kW
X, Z, Y, B travels 235/580/105/580 mm
Tool places in turret 12
Tool section 25×25 mm
Tool dia for boring bars D40 mm
Weight ca. 3850 kgs
Machine dim. LxWxH 2800 x 1800 x 1750 mm
Accessories and features

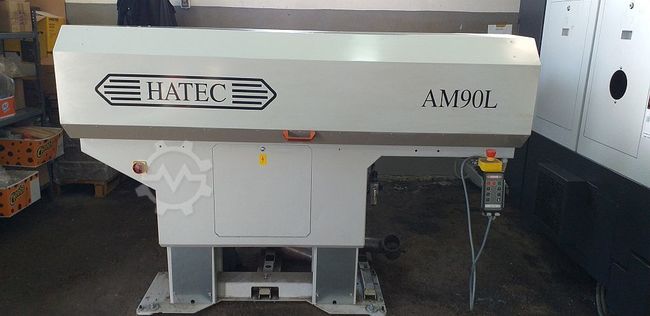

– HATEC AM90L short barfeeder (1,5 m) with D6, D12 and D20 mm pusher

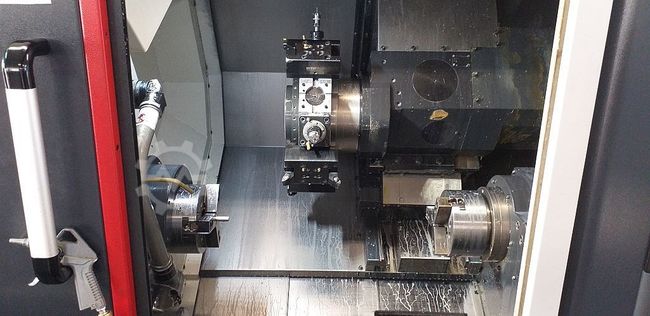

– Live tool turret 3 x radial and 3 x axial
N3fo9
– Static tool holders
– Programmable C axes on main and sub spindle
– Sub spindle
– Built-in toop presetter
– 2 x D175 mm hydraulic chucks mounted on main and sub spindles
– Chip conveyor
– Tower lamp
– Coolant unit
– Manuals on german and english
The machine is hardly used and in in new condition. Under power in Hungary.
Machine Data | |||||||||||||||
| Machine ID | WM234763 | ||||||||||||||
| Machine type | Cnc turning-milling center | ||||||||||||||
| Manufacturer | SMEC | ||||||||||||||
| Model | SL2000 SY | ||||||||||||||
| Year of manufacture | 2018 | ||||||||||||||
| Condition | as good as new (ex-display) | Price and Location | |||||||||||||
| Location | Szekesfehervar , Hungary | ||||||||||||||
