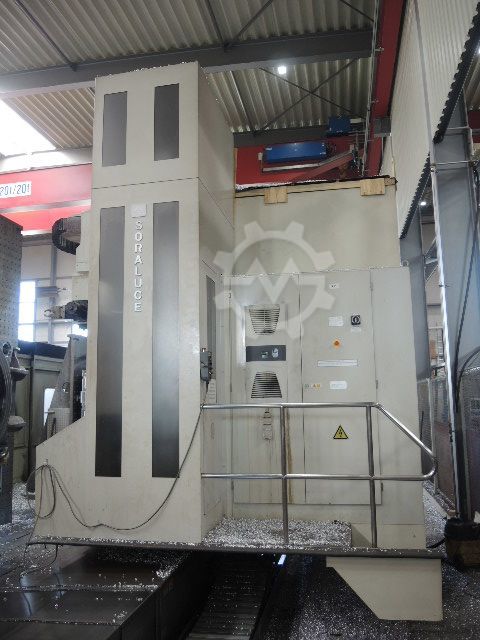

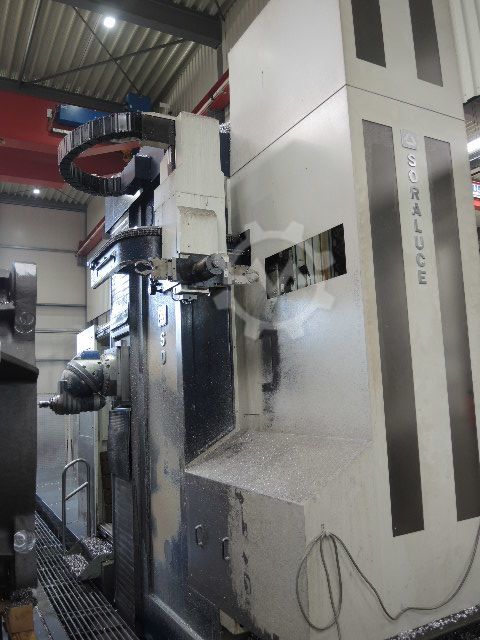

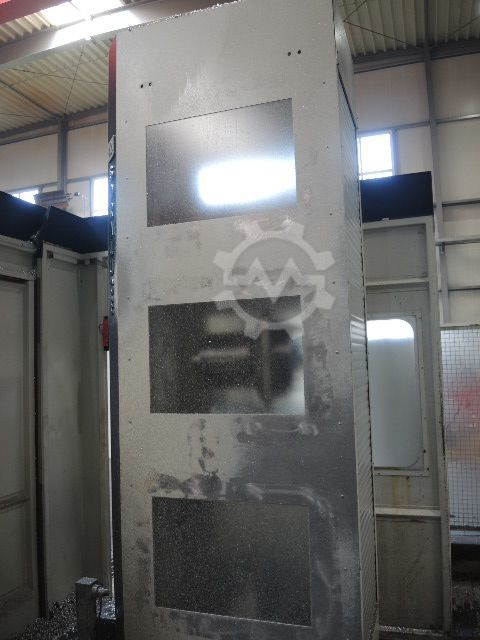

SORALUCE SORAMILL FP 12000 Travelling column milling machine

Posted By :
Comments : 0

X – Axis 12.000 mm
Y – Axis 1.500 mm
Z – Axis 2.600/3100 mm
floor plates 13.000 x 2500 x 300 mm
NC-swiveling head:
spindle taper 50 SK
spindle speeds 20 – 5000 rpm
spindle drive 32 KW
torque 900/1045 Nm
A – Axis 0,001°
C – Axis 0,001°

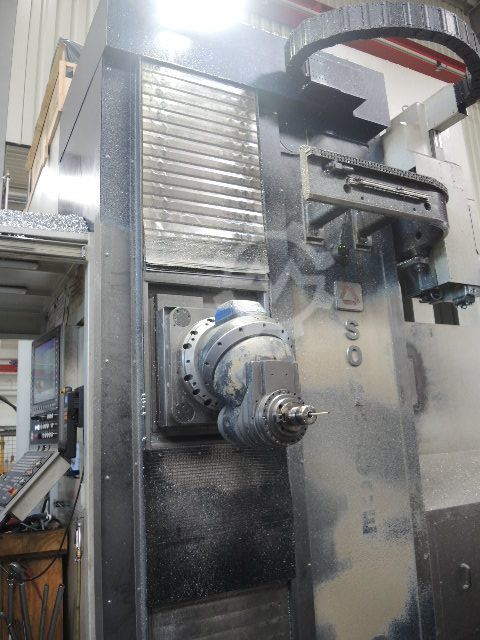

Horizontal milling head:
spindle taper 63 HSK
spindle speeds 20 – 24.000 rpm,
spindeldrive 42 KW
torque 67 Nm
rapid travel 35m/min
feed force 20.000 N
acceleration of axis 1,0 / 1,5 m/s
tool dia. 125/250 mm
Bfke9kz9jp
tool length 400 mm
tool weight 20 Kg
machine weight 41 to

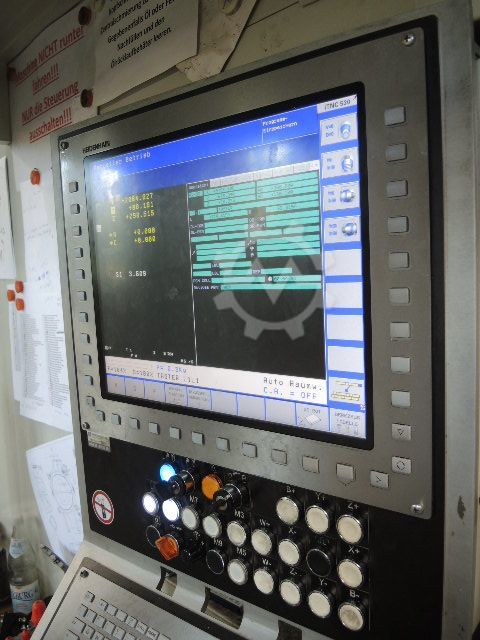

* CNC HEIDENHAIN iTNC 530
* Software: Adaptive Control
* Electronic handheld control
* Teleservice
* 40-ATC – SK 50,
* 20-ATC HSK 63
* RENISHAW RMP 600 measuring probe
* tool measuring probe TT 140
* Preparation for NC-rotary table
* Auto-indexing head A+C 0,001°
* Horizontal milling head
* Head changing station with 3 positions
* Extension Y= 1500 mm
* Internal cooling for horizontal milling head Cooling tank 2000 l
* Internal cooling 40 bar, 23 l/min
* Airblow system external 15 bar
* Frequency-controlled highpressure pump
* Floor plates, protective cabine, Fixatoren

Machine Data

Machine IDWM228021
SORALUCE SORAMILL FP 12000
Machine typeTravelling column milling machine
ManufacturerSORALUCE
ModelSORAMILL FP 12000
Year of manufacture2015
Conditionready for operation (used)

Price and Location

LocationEngelskirchen , Germany

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
