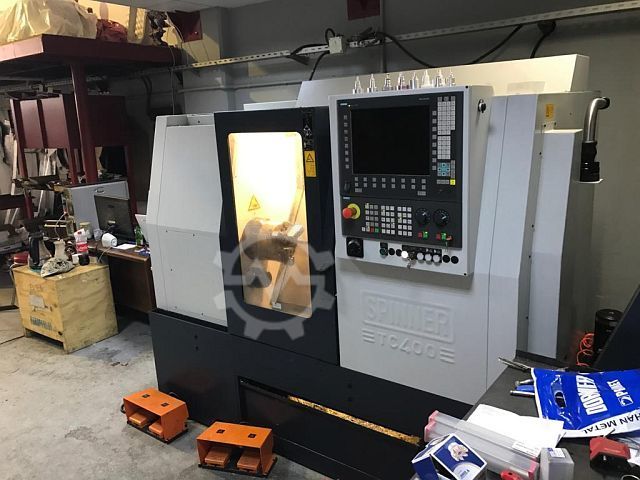

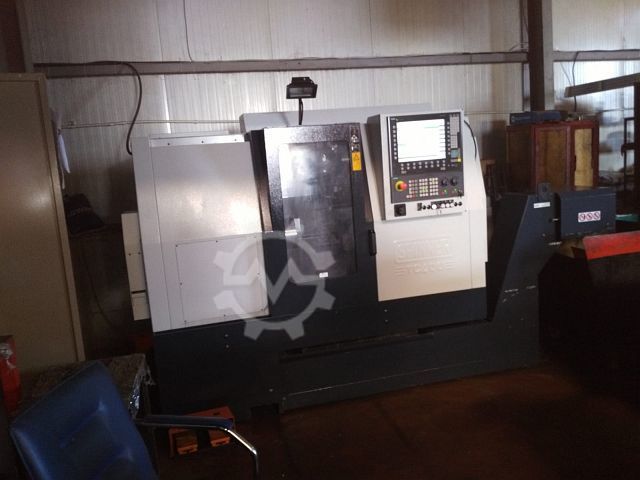

SPINNER TC 400 52 MC CNC Lathe
You can explore similar available equipment below or submit an enquiry to receive alert notifications.
| Manufacturer | SPINNER |
|---|---|
| Model | TC 400.52 MC |
| Year of Manufacture | Not Specified |
| Condition | Used Machinery |
| Hours of Operation | Not Specified |
| Serial Number | Available on Request |
|---|---|
| Location | Contact Seller |
| Category | Metal processing machines |
| Reference ID | #WM-1264 |
| Listing Published | 03 January 2022 |
turning diameter 280 mm
turning length 450 mm
control
—–
WORKING RANGE TURNING
– swing diameter (max) 400 mm
– turning diameter (max) 280 mm
– worpiece length max. 450 mm
MAIN SPINDLE
– c-axis: yes
COUNTER SPINDLE
– drive power S6 40% 15 kW
– drive power S6 40% 19 kW
– spindle torque S6 40% 96 Nm
– spindle torque S1 100% 121 Nm
– c-axis: yes
X/Z SLIDE
– Z-axis travel 515 mm
– X-axis travel 200 mm
TOOL MAGAZINE
– number of positions 12
DIMENSIONS / WEIGHTS
– space requirements -left/right- 2100 mm
– space requirements -front/back- 1350 mm
– total height 1800 mm
– total weight approx. 3800 kg
ATTACHMENTS (TURNING)
– European CE standards: yes
BUILT IN Spindle

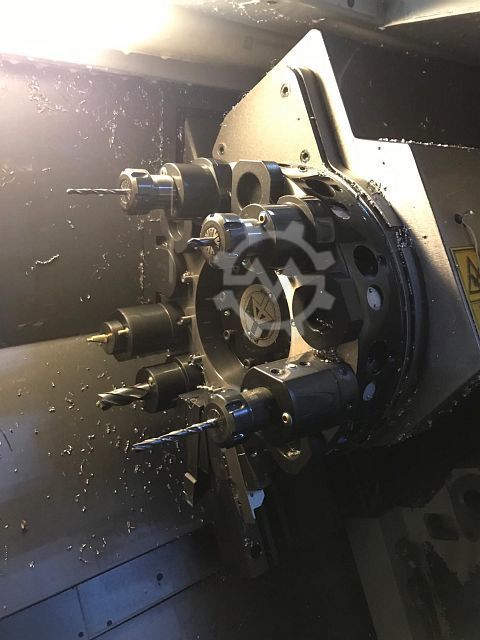

Servo Turret capable of indexing in 0.15 seconds
Live Tools for Drilling and Milling Operations
SIEMENS840D SL
Nueuh
Programmable Counter Tailstock
Stick Drive Connection preparation
Mirror Jaw Min.-Max. And special analog cylinder distance sensor that can adjust the Clamping Position from the Screen Menu
Rigid casting design
Hardened and ground slides to minimize vibration when machining parts
Driven tools at all stations
High precision C Axis feature
Better surface quality
Wide variety of machine configurations to suit your workpiece
Compact design that takes up less space
