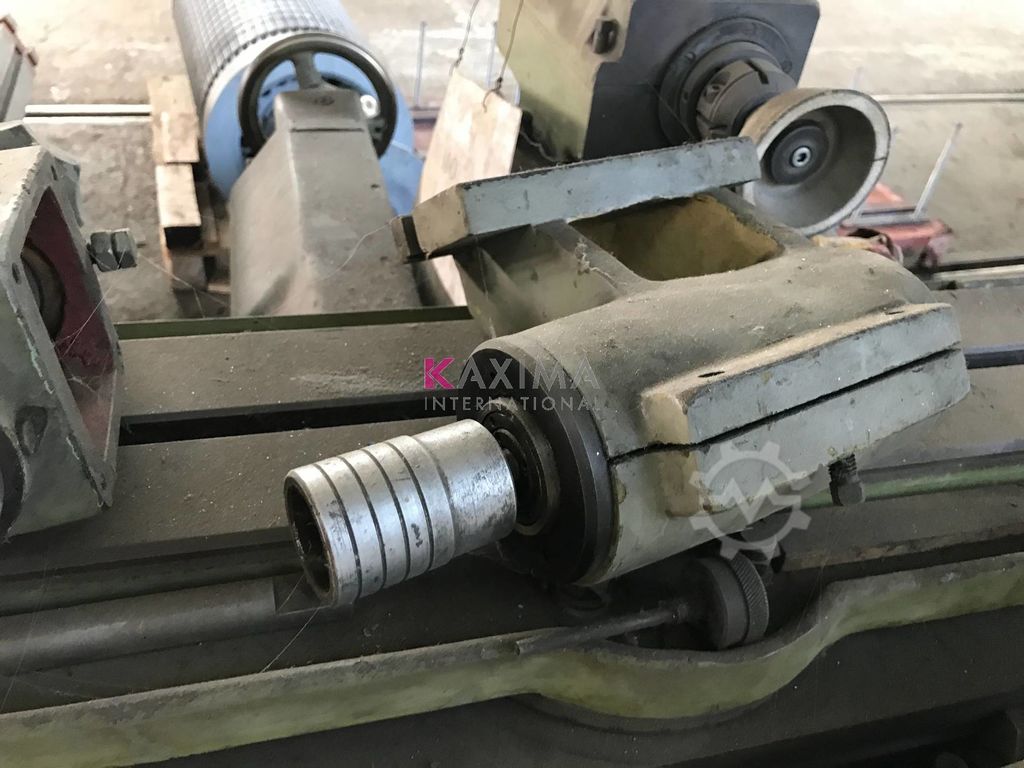

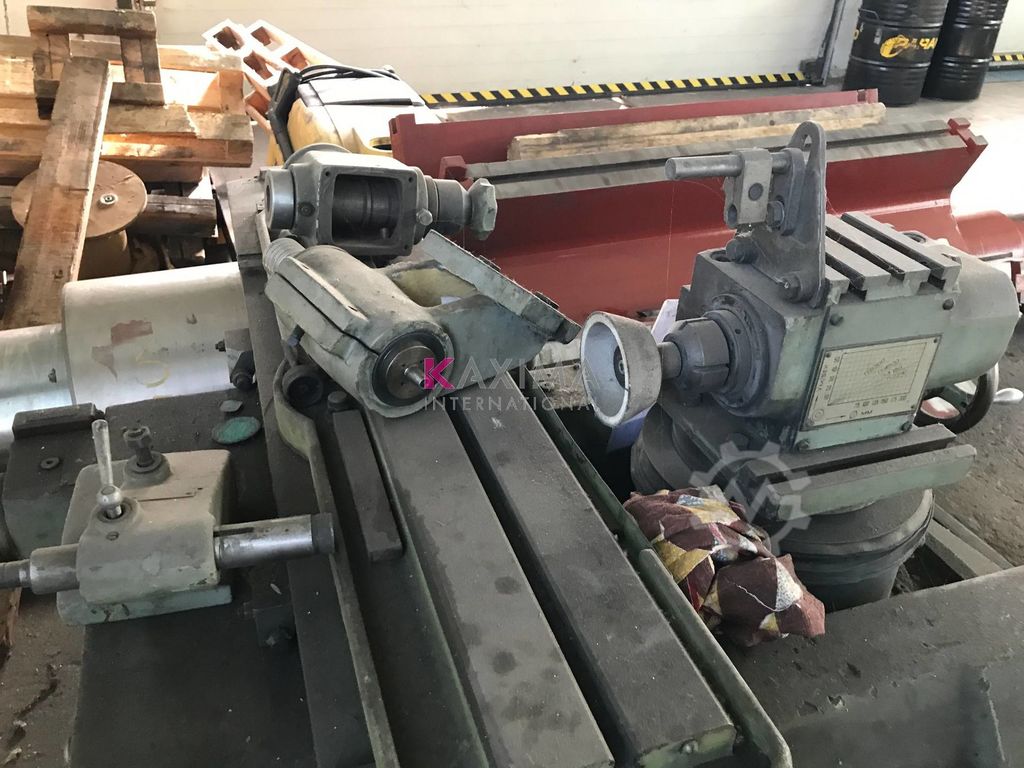

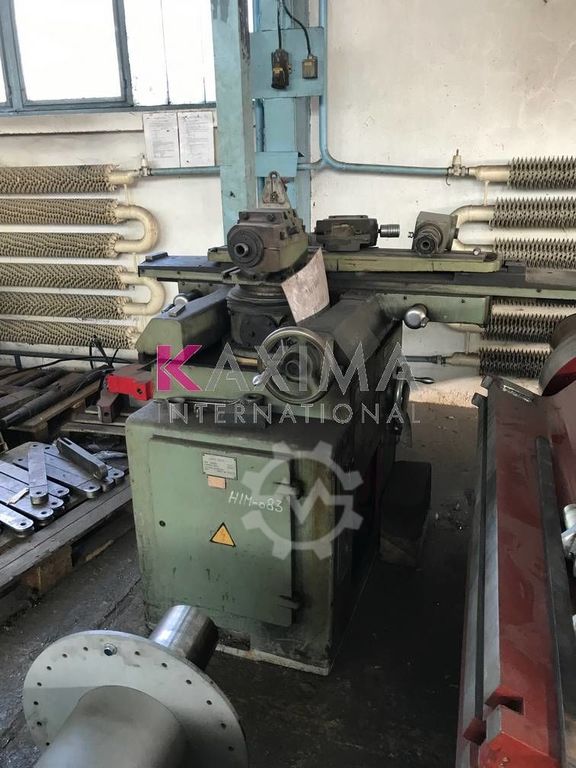

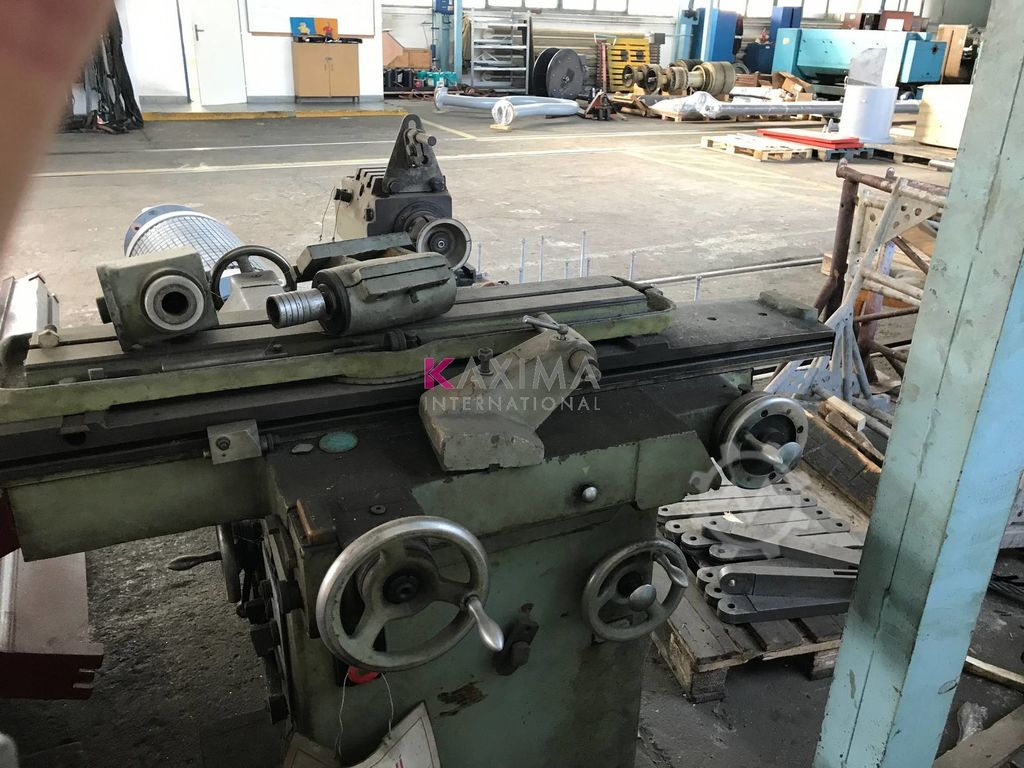

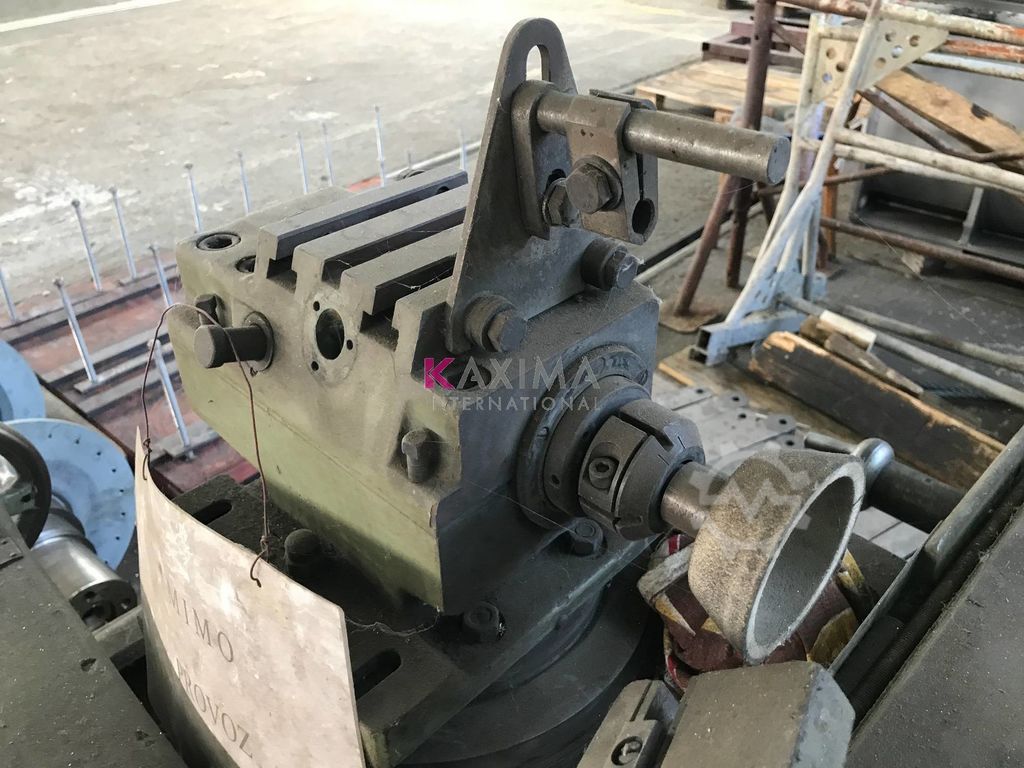

STANKO 3B642 STANKO 3B642 Tool grinding machine

Posted By :
Comments : 0

Max. dimensions of the machined product: 500 mm
Max. diameter of grinding wheel: 250 mm
Table work surface dimensions (length x width): 900 x 140 mm
Largest longitudinal / transverse manual table movement: 450/230 mm
Angle of rotation of the table in the horizontal plane 90 °.
Maximum vertical movement of the headstock: 250 mm
Angle of rotation of the headstock in the horizontal plane: 350 °.
Grinding wheel speed: 2240, 3150, 4500, 6300 rpm.
Cone: Morse 3 (univers. Morse 5)
Largest diameter of the installed grinding wheel: 200 mm
Bijw0gtzb3
Largest diameter of installed grinding wheel of other types: 150 mm
Grinding wheel spindle electric motor: 1.5 / 1.1 kW
Machine dimensions: 2050 x 1820 x 1550 mm
Machine weight: 1250 kg

Machine Data

Machine IDWM231701
STANKO 3B642
Machine typeSTANKO 3B642 Tool grinding machine
ManufacturerSTANKO
Model3B642
Year of manufacture1979
Conditionexcellent (used)

Price and Location

LocationBrno , Czech Republic

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
