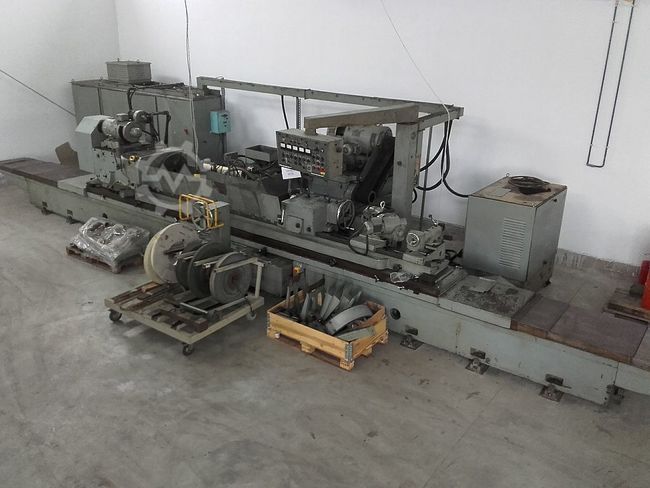

STANKO 3M194 Cylindrical grinding machine
Manufactured by Kosiora (Russia)
Max. work piece diameter 560 mm
Min. work piece diameter 40 mm
Max. work piece length 4000 mm
Max. grinding length 3800 mm
Max. work piece weight 3000 kgs
Size of grinding wheel:
– outer diameter 400…750 mm
– width 100 mm
– inside diameter 305 mm
Speed of work 12…120 rpm
N0wzh
Speed grinding wheel 600…1200 rpm
Traverse speed of table 22…50 m/min
Max. table stroke 4240 mm
Min. table stroke 110 mm
Table inclination:
– clockwise 0,3 degree
– counterclockwise 6 degree
Headstock rotation speed 8…80 rpm
Grinding head movement 0,46 m/min
Table movement speed 0,05…3,7 m/min
Total power required 42 kW
Machine dimensions LxWxH 14500 x 3700 x 2450 mm
Weight ca 34300 kg

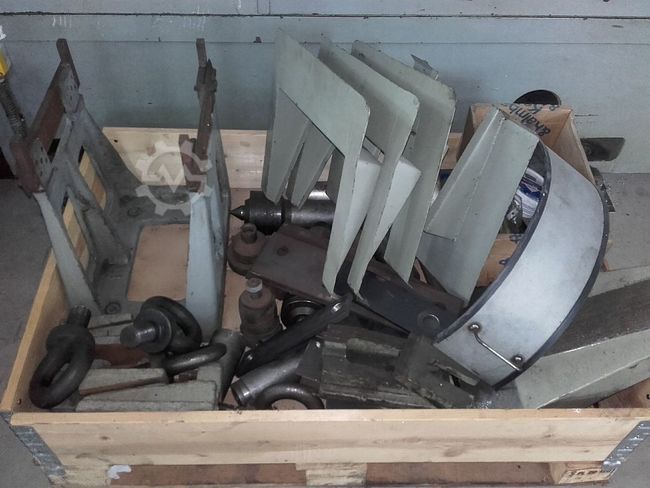

Accessories
– Many grinding wheels
– Balancing stand
– Coolant unit with papier band filter
– Dressing units
– Tailstock
– Centers
– Full manuals
Machine Data | |||||||||||||||
Machine ID | WM234111 | ||||||||||||||
Machine type | Cylindrical grinding machine | ||||||||||||||
Manufacturer | STANKO | ||||||||||||||
Model | 3M194 | ||||||||||||||
Year of manufacture | 1989 | ||||||||||||||
Condition | good (used) | Price and Location | |||||||||||||
Location | Szekesfehervar , Hungary | ||||||||||||||
