TAURING ALFA70H2 profile Bending Roll Alfa70

Posted By :
Comments : 0

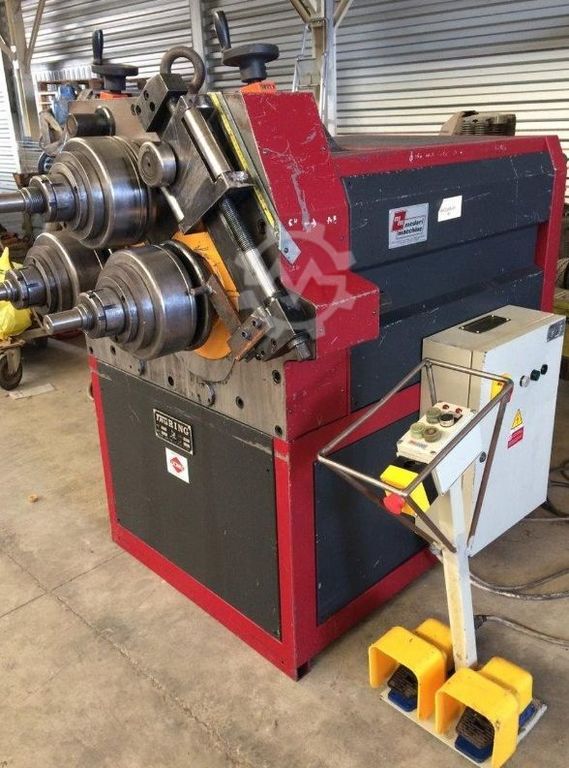

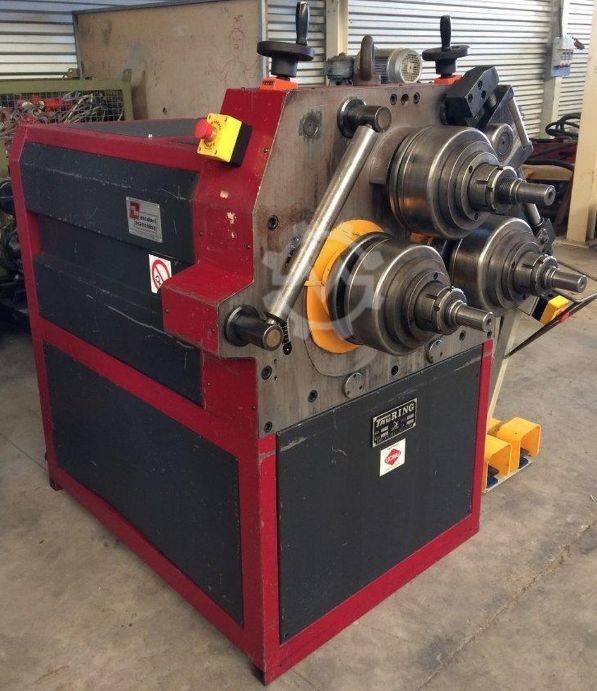

-PROFILE BENDING MACHINE TAURING MODEL ALFA70H2 -WITH SET OF UNIVERSAL ROLLS AS SHOWN ON PHOTOS ENCLOSED-
MACHINE REVERSIBLE CAN WORK WITH VERTICAL / HORIZONTAL SHAFTS
-SHAFTS SIZE 70 MM – SHAFTS USEFUL LENGTH 145 MM – ROLLERS DIAMETER 245 MM – POWER ON HYDRAULIC UNIT 4KW
-ROTATION OF ROLLS VIA ELECTRIC MOTOR 1,1 KW – HYDRAULIC MOTION OF SIDE ROLLS INDEPENDENT PLANETARY PINCH
Cyzph7p8
-ROTATION OF ROLLS UP TO RPM 5,5 – APPROX WEIGHT 1300KGS – DIMENSION 118 X 165 CM BASE-
-HEIGHT 155 CM – CONTROLL FOOT PEDAL ROTATION – CONTROL PUSH BUTTONS LECTRO-HYDRAULIC CONTROL OF SIDE ROLLERS
LATERAL ARM CORRECTOR RIGHTSIDE IN 2 DIRECTION WITH ADD-ON ROLLER ANGLE BENDING LEG-IN / LEG-OUT
LATERAL GUIDE ROLLER LEFTSIDE – POSITION STOPPERS ADJUSTABLE WITH READOUT OF SIDE ROLLERS TO REPEAT THE BENDING WORKS

Machine Data

Machine IDWM232528
TAURING ALFA70H2
Machine typeprofile Bending Roll Alfa70
ManufacturerTAURING
ModelALFA70H2
Year of manufacture1996
Conditiongood (used)

Price and Location

LocationCesena , Italy

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
