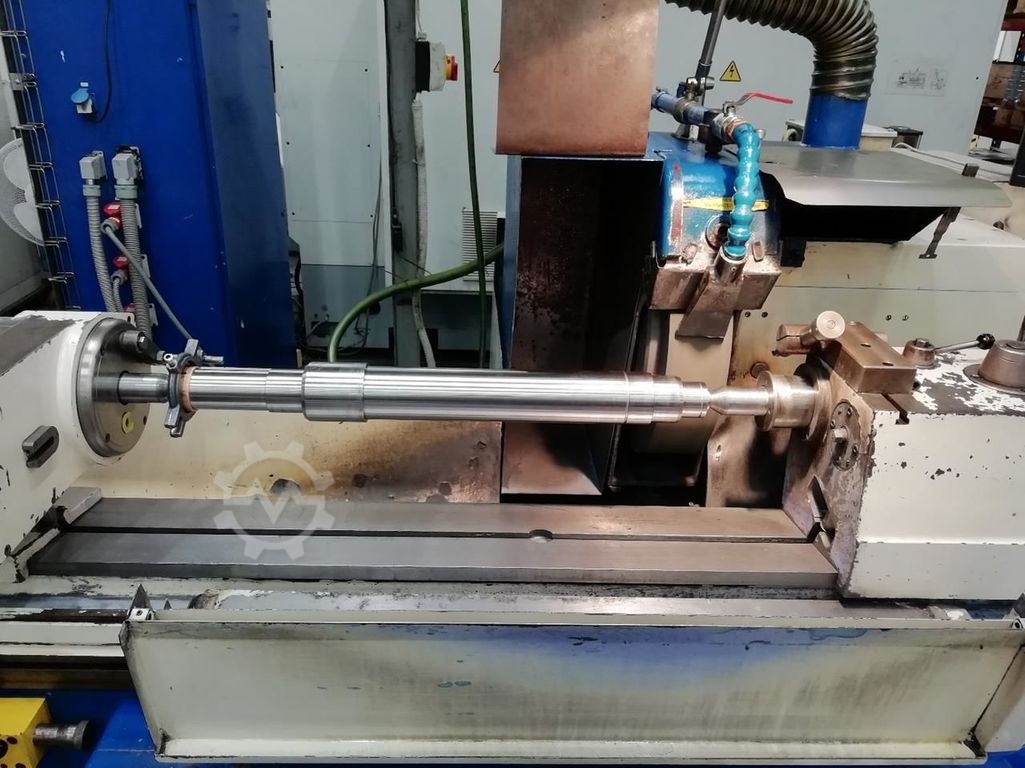

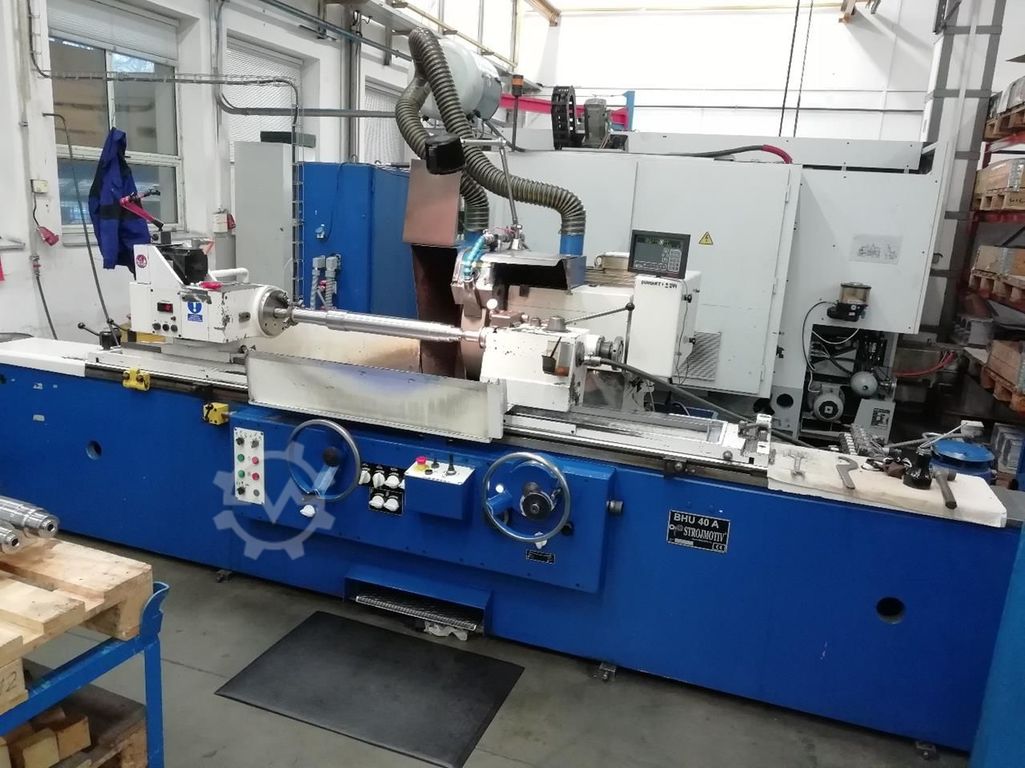

TOS BHU 40A 1500 Cylindrical grinding machine

Posted By :
Comments : 0

GO 2016
Maximum length of the grinding: 1500 mm
Maximum weight of the workpiece: 300 kg
Power of the grinding wheel spindle drive: 15 kW
Maximum rotary speed the grinding wheel spindle: 1240 1/min
Maximum grinding wheel diameter: 600 mm
Diameter hole in the grinding wheel: 305 mm
Total power demand: 22 kVA
Grinding diameter: 400 m
Maximum grinding wheel width: 100 mm
Distance between centers: 1500 mm
Longitudinal movement of the table – x-axis: 1 – 1790 mm
Spindle taper: Morse 5
Maximum grinding wheel width: 150 mm
Grinding diameter in open support: 110 mm
Machine weight: 5950 kg
Equipment:
Possibility of setting the headstock of the grinding wheel at an angle
Grinding wheel
Dresser
Supports
Nwaxb
Luneta
Side wheel dresser
Flanges for disc
DRO NEWALL DP700

Machine Data

Machine IDWM229981
TOS BHU 40A/1500
Machine typeCylindrical grinding machine
ManufacturerTOS
ModelBHU 40A/1500
Year of manufacture2016
Conditiongood (used)

Price and Location

LocationBrno , Czech Republic
