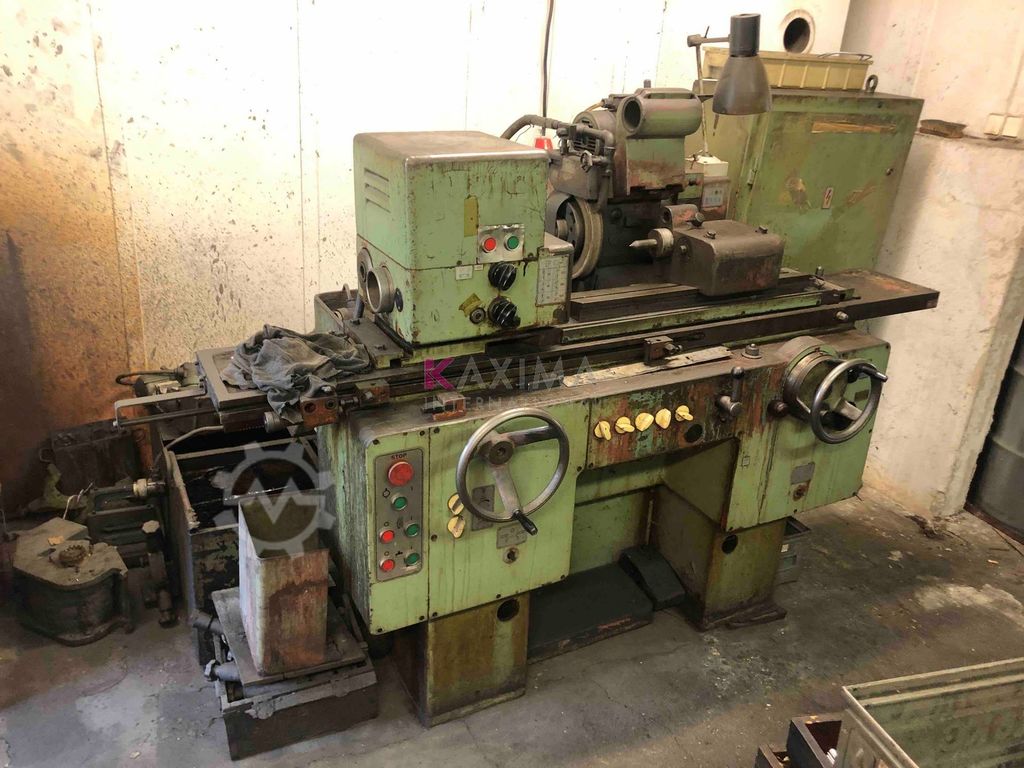

TOS Hostivař TOS BUA 20 TOS BUA 20 grinding machine

Posted By :
Comments : 0

Type: BUA 20
Manufacturer: TOS Hostivař
Swing: 200 mm
distance between centers: 450 mm
dimensions of grinding wheel-diameter / width: 350×32 mm
taper Morse 4 chuck diameter: 160 mm diameter Electromagnetic clamping plate: 150 mm angle of the spindle: 90 °
working spindle speed range: 50-650 rpm 1
Yp2iipgf
angle of the grinding spindle in a horizontal plane, on both sides: 60 °
lateral movement of the grinding spindle 200 mm self-cross feed grinding spindle at the reversal points: 0-0,05 mm
automatic cross feed grinding spindle grooving 0-5 mm.min-1
achievable conicity of 1: 3
table speed, continuously variable: 0.05 to 4.5 meters per minute-one grinding spindle motor 2.7 kW machine floor space: 1,530 x 2,830 mm
Machine weight: 1,700 kg

Machine Data

Machine IDWM233300
TOS Hostivař TOS BUA 20
Machine typeTOS BUA 20 grinding machine
ManufacturerTOS Hostivař
ModelTOS BUA 20
Conditionexcellent (used)

Price and Location

LocationBrno , Czech Republic

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
