x travel 1600 mm
y travel 1000 mm
z travel 780 mm
—–
WORKING RANGE -CUBIC-
– number of processing axes (excl parallel axes) 5
– X-axis travel 1600 mm
– Y-axis travel 1000 mm
– Z-axis travel 780 mm
TABLE
– table surface (left-right) 1000 mm
– table surface (front-back) 1000 mm
– workpiece load (max) 6000 kg
– rotation axis: C
– – positioning/indexing 0.001 °

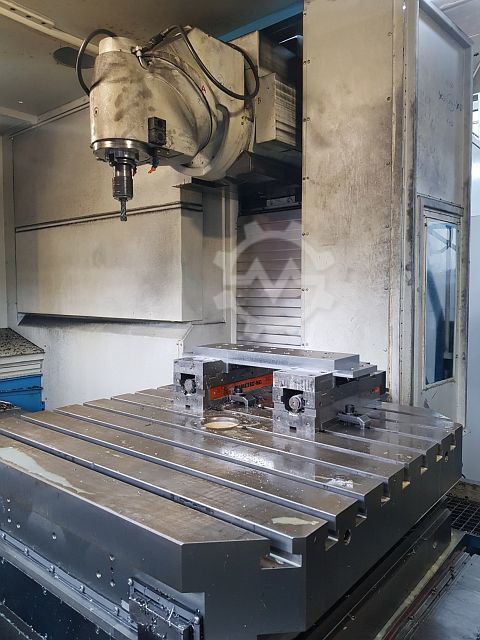

MILLING SPINDLE / HEAD
Beofw8vrnp
– spindle type: tilting head
– – positioning/indexing 2.5 °
– – positioning/indexing 2.5 °
– spindle revolutions (max) 2500 /min
– tool fixture: ISO SK 50
– drive power 22 kW
TOOL MAGAZINE
– number of positions 60
AUTOMATIC WORKLOAD EQUIPMENT
– number of store positions 2
– pallet length 1000 mm
– pallet width 1000 mm
– number of pallets 2
DIMENSIONS / WEIGHTS
– space requirements -left/right- 6400 mm
– space requirements -front/back- 6900 mm
– total height 4000 mm
– total weight approx. 26000 kg
