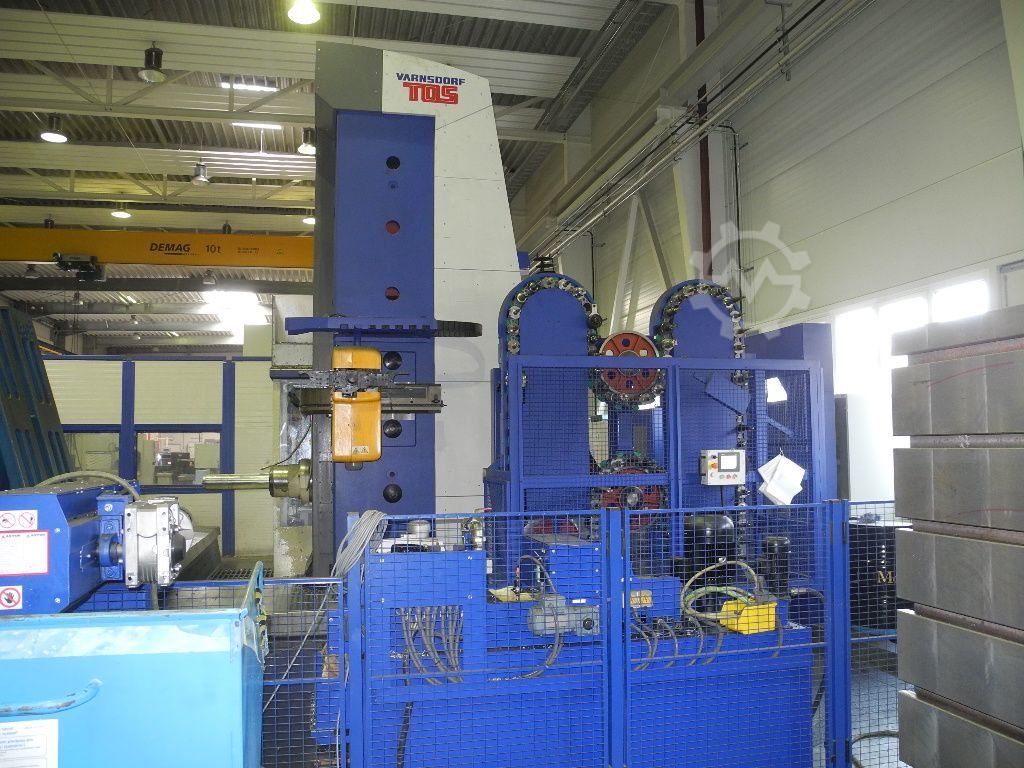

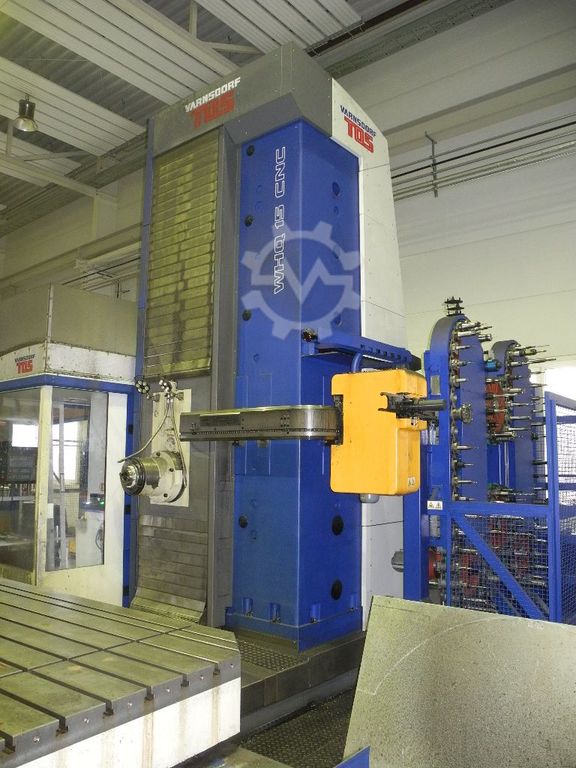

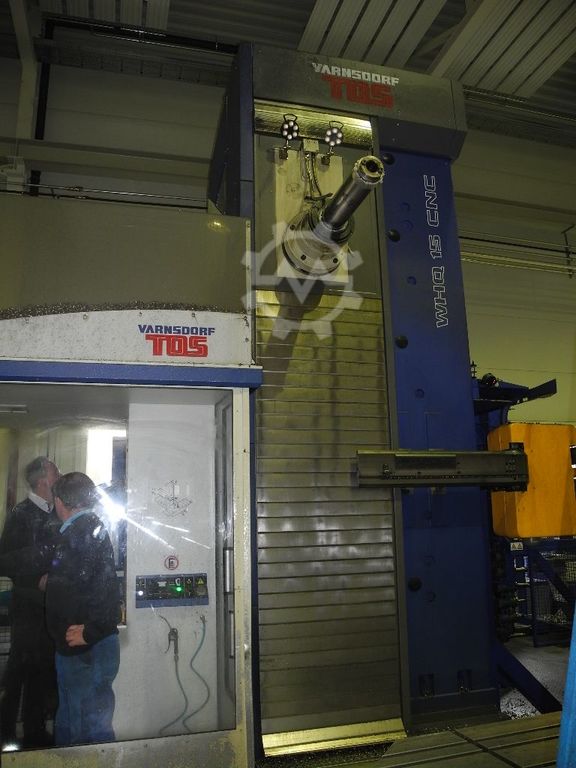

TOS VARNSDORF WHQ 15 CNC CNC Horizontal Boring Mill

Posted By :
Comments : 0

spindle diameter 150 mm
X – axis 5000 mm
Y – axis 2500 mm
Z – axis 1600 mm
W – axis 900 mm
B – axis 360 x 0,001 °
table surface 3000 x 2000 mm
max. table load 18 to
spindle taper 50 BIG SK
spindle speed 10 – 3000 rpm
spindle drive 46 / 55 KW
torque 3100 / 3720 Nm
tool length 500 mm
tool diameter 130/320 mm
tool weight 25 Kg
feed range 4 – 5000 mm/min
rapid travel 8/10 m/min.
total power required
machine weight 49 t
floor space required 11,4 x 12,0 x 5,4 m
Bhoo3vr73g
Spindeldurchmesser 150 mm
CNC HEIDENHAIN iTNC 530
Electronical hand-held control
Direct Measuring systems
80 – ATC

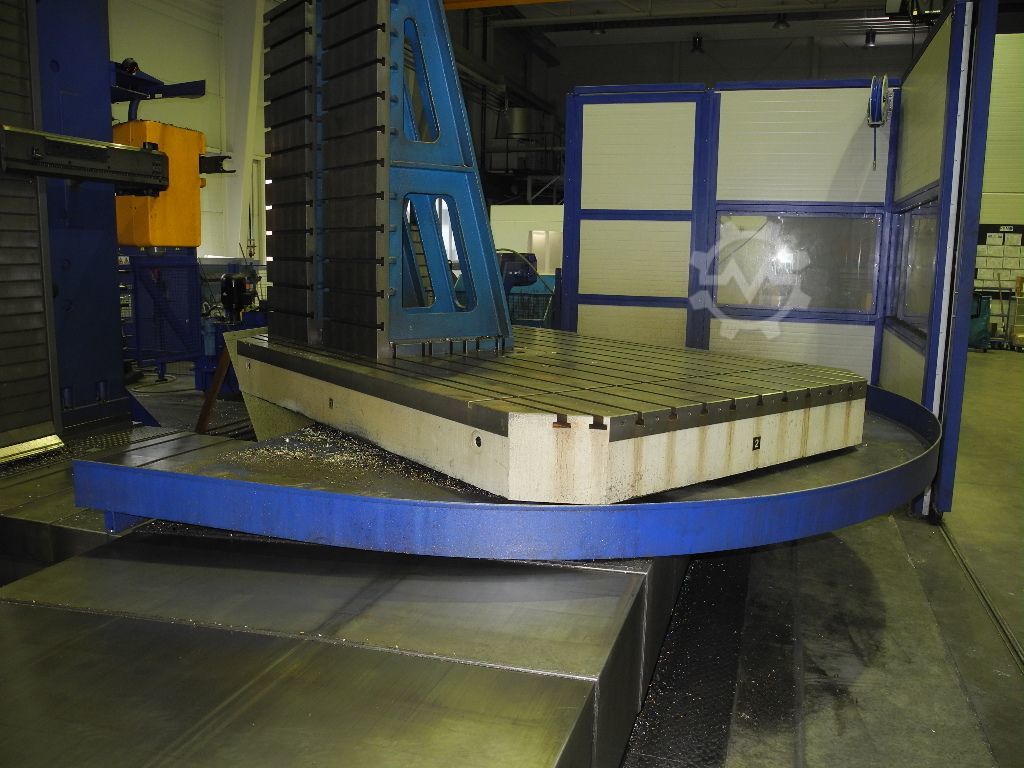

NC-rotary table 360° / 0,001°
B – axis with play-free drive
RENISHAW RMP 60 probe
Spindleoil cooler
Spindle support sleeve
Airblow via jets
Operator cabin with vertical stroke 1600 mm and transverse stroke 600 mm.

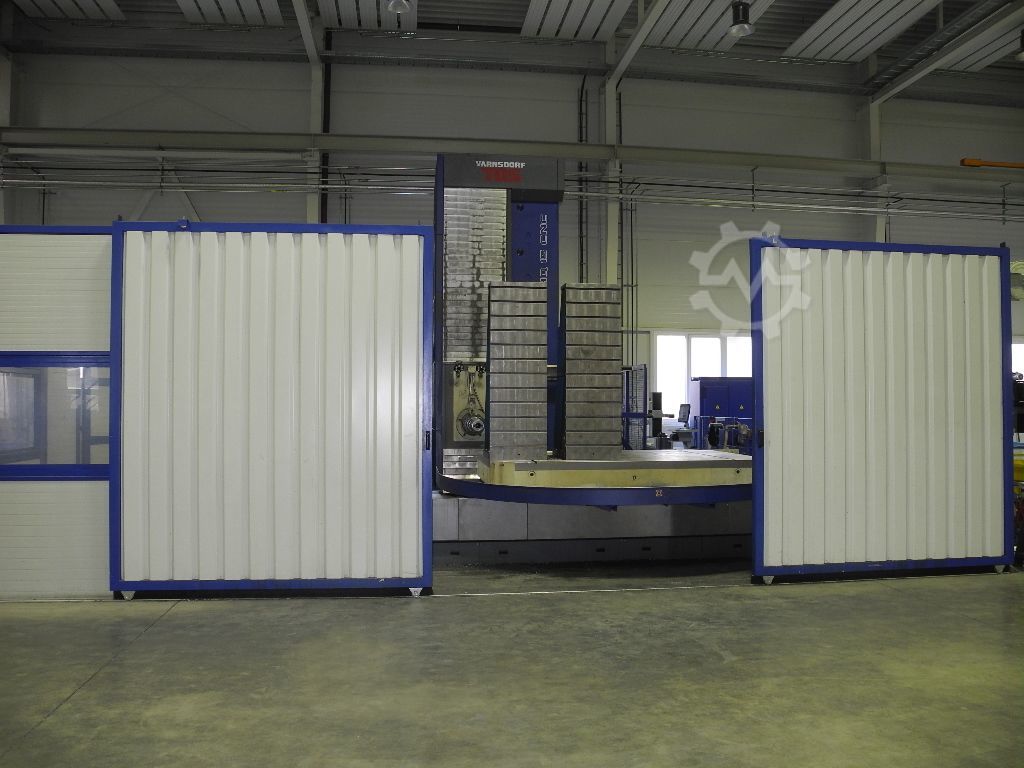

Protectice cabine
Paper band filter
Cooling tank
Cooling through spindle 70 bar
Chip conveyor
Installed in 2015, 3153 hrs. spindletime only!

Machine Data

Machine IDWM227084
TOS VARNSDORF WHQ 15 CNC
Machine typeCNC Horizontal Boring Mill
ManufacturerTOS VARNSDORF
ModelWHQ 15 CNC
Year of manufacture2014
Conditionexcellent (used)

Price and Location

LocationEngelskirchen , Germany

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
