X – axis 3000 mm
Y – axis 1300 mm
Z – axis 600 mm
rapid travel X-Y-Z 100 m/min
acceleration X-Y-Z 10 m/s
Positioning accuracy X-Y-Z 0,08 mm
max.length of work piece 2540 mm
workpiece height max. 370 mm
laser output 3000 Watt
B – axis +/- 135 °
B-axis roatry speed 90 rpm
C-axis 360 °
C-axis rapid 90 rpm
machine weight 15 to
total power required 47 KW
equipped with:

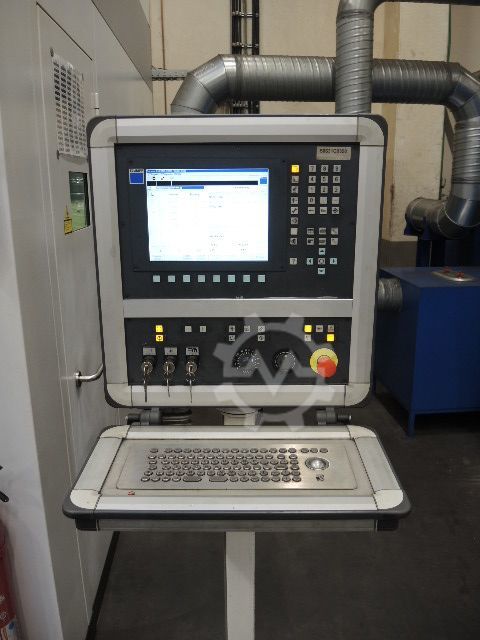

CNC SIEMENS 840 D
BOX IPC 627 Prozessor
Hard drive space 60 GB
USB interface

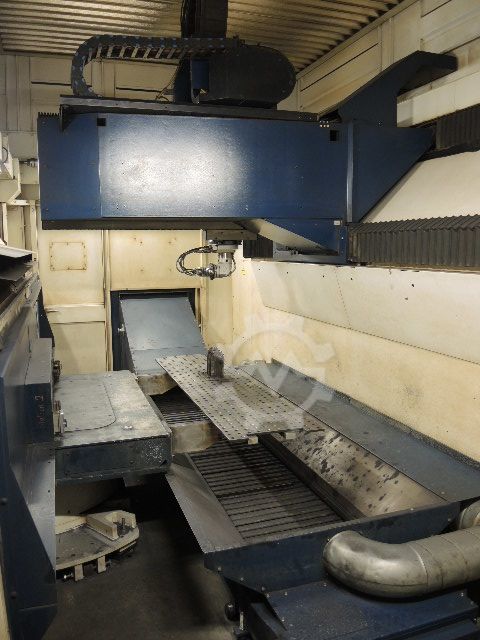

3 D laser head
Bgrnrhm2jz
Laser TruDisk 3001
Cutting gas oxygen
4 pc. configurable control interface
Configurable control interface KSS
2 status lamps
Prepared for extraction
Rotating workpiece changer D = 4000 mm
Dynamic cutting optic

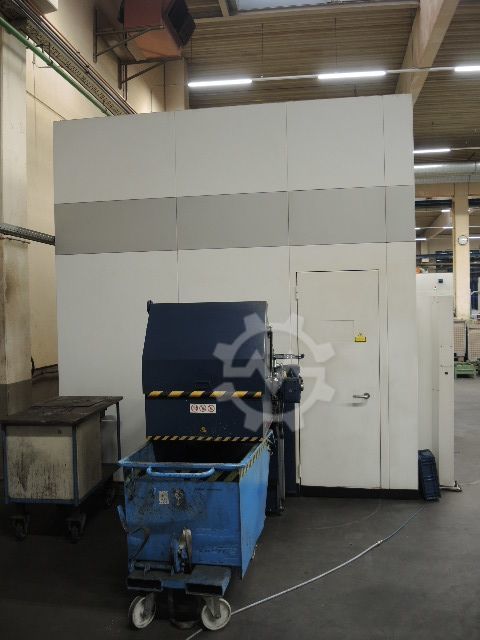

Chip conveyor
Setting device for cutting optic
