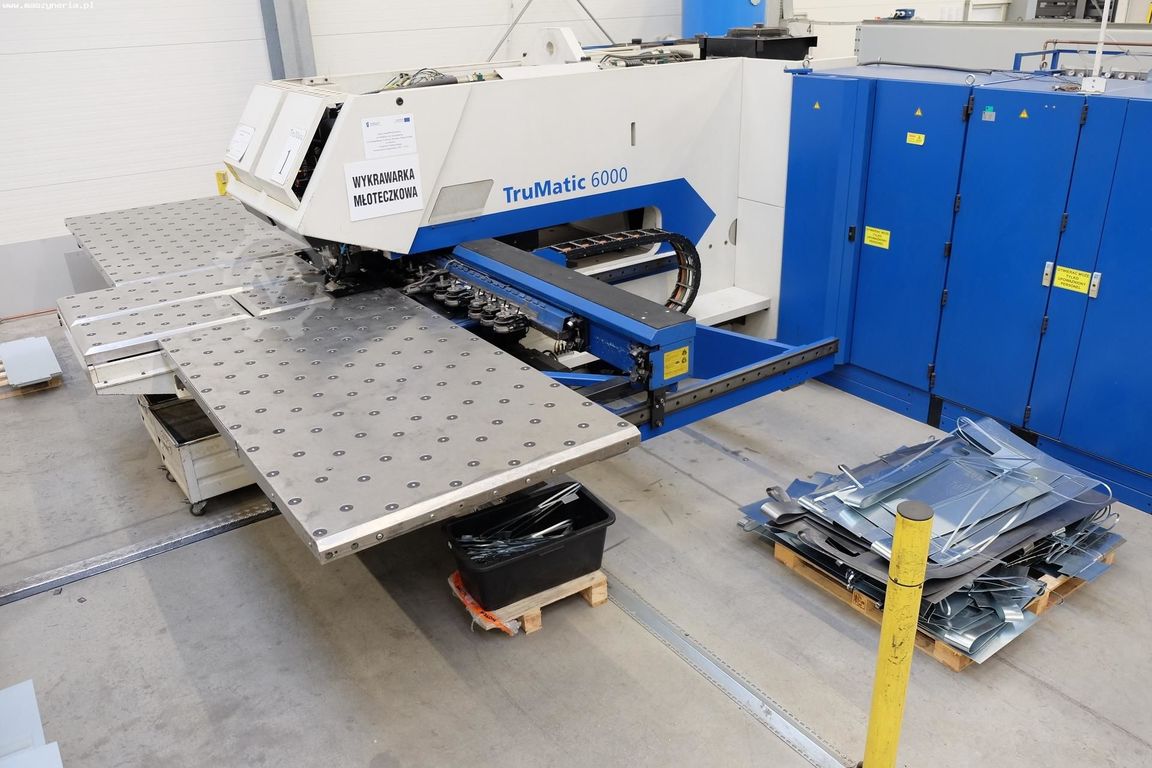

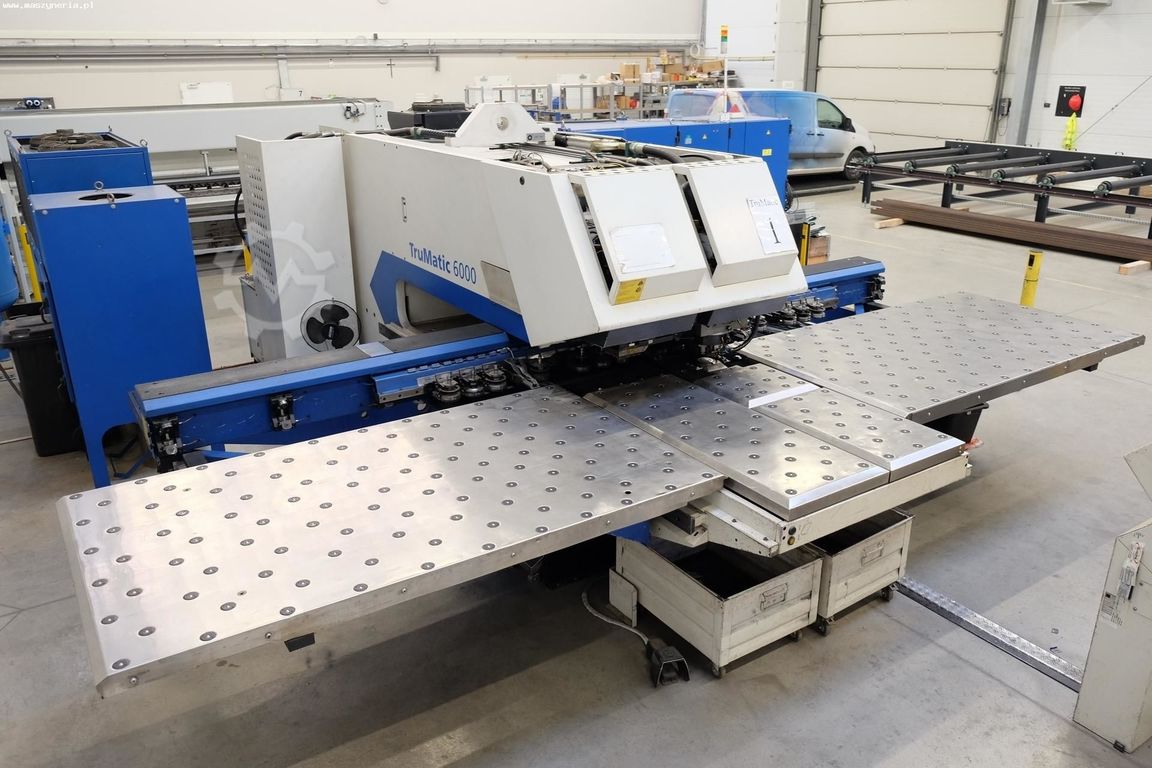

TRUMPF TRUMATIC 6000 Punching machine with laser

The laser punching machine TRUMPF TRUMATIC 6000 was produced in 2007.

Technical specifications :

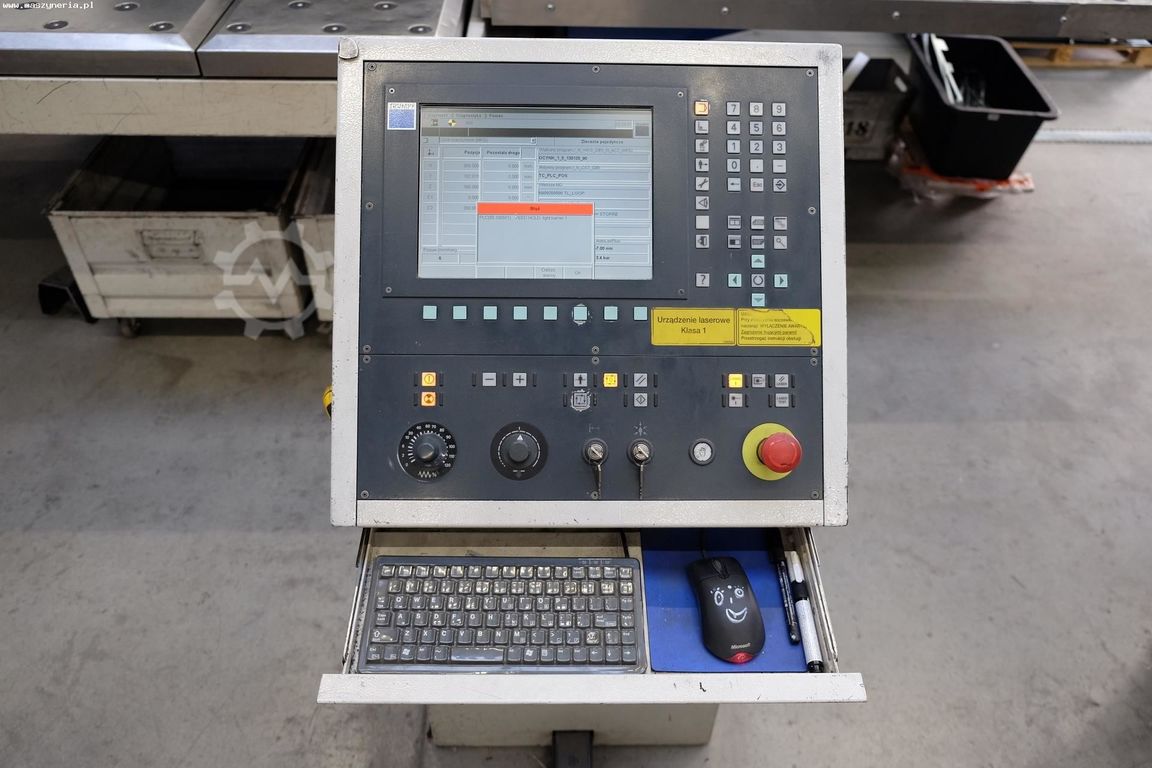

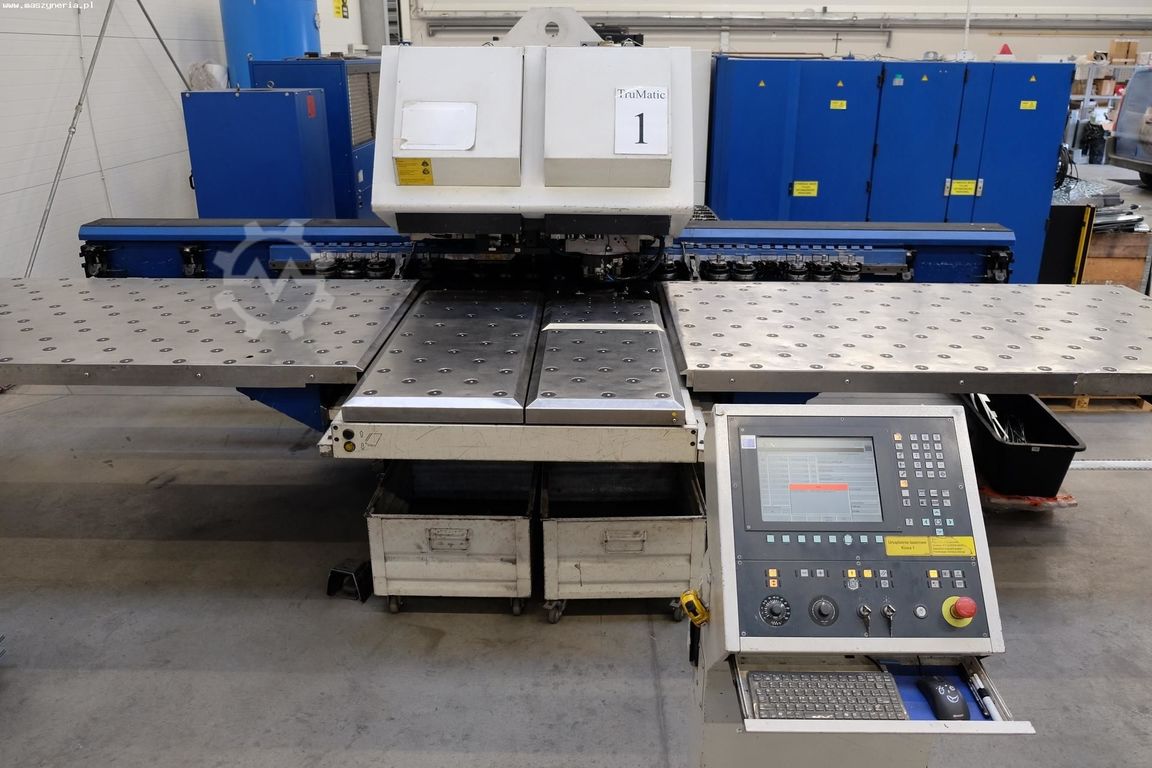

– CNC control: Siemens Sinumerik 840 D
Eee8j02
– laser power: 2700 W
– maximum sheet thickness: 8 mm
– punching force: 220 kN

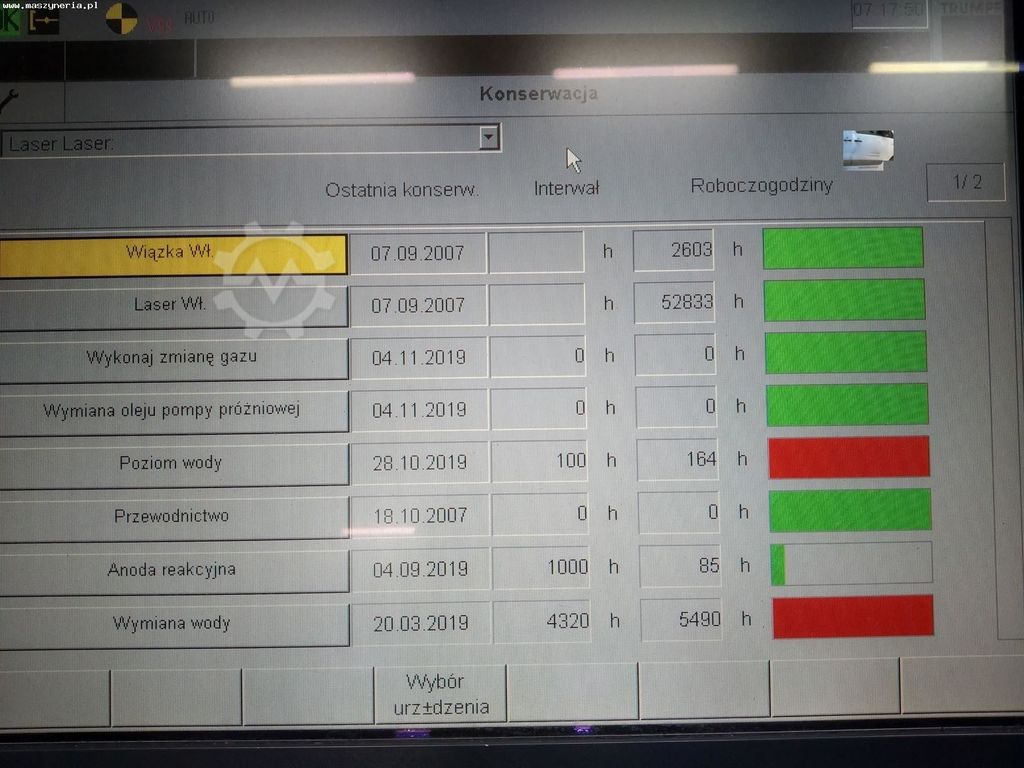

– laser cutting time: 2603 h
– laser on time: 52833 h
– active clamp (step programmed): 4.5-20 kN
– maximum workpiece weight: 230 kg
– maximum cruising height in punching mode: 35 mm
– maximum cruising height in laser mode: 22 mm
– X axis speed: 90 m / min.
– Y axis speed: 60 m / min.
– X and Y axes simultaneously: 108 m / min.
– number of strokes, punching: 900 min-1
– number of strokes, marking: 2800 min-1
– C axis, punching: 60 rpm
– C axis, threading: 330 rpm
– space for tools in the line magazine: 18 at 3 sheet holders
– number of tools when using MultiTool: 18 to 180 tools
– rotation of all tools: 360 degrees of rotation
– tool change time: 1.5-5 s
– maximum punching diameter, single punch: 76.2 mm at all tool positions
– maximum punching diameter, standard Multicut cut: 200 mm

Workspace without reposition:
– combined mode: 2585 x 1280 mm
– punching mode: 3120 x 1280 mm
– laser mode: 3120 x 1280 mm

Advantages of the punching machine TRUMPF TruMatic 6000 :
– stable frame C
– guide with coordinate system, linear magazine, 18 tool stations, 3 clamps
– drives: maintenance-free, three-phase servo motors
– programmable 2 active clamping cylinders for repositioning
– cutting head for laser cutting: 5 “lens, quick change device, DIAS height adjustment
Punching head:
– electrohydraulic pusher drive allows a frequency of 900 beats / minute
– smooth tool rotation, 360 degree rotation of all tools
– automatic tool length compensation
– lubrication of spray tools
– security: light barriers
– Trutops v offline programming software, floating license

The TRUMPF TruMatic 6000 is ready for use and can be checked on the move.
– the machine with peripherals covers an area of ​​7.5 x 7.5 m
– total weight: approx. 16,000 kg

Price: € 15,290,000.00
