Vertical lathe SK 40 Carousels

Posted By :
Comments : 0

Producer: Czechoslovakia, Závody J.Dimitrova Blansko
Status: 70%
Without accessories
Dismantling and loading not included – EXW
The SK 40 carousel is designed for turning, drilling and grinding operations of large forgings and welded castings up to 40 tons and max. diameter 40000 mm and height 2500 mm
Maximum diameter turned side slide mm 4000

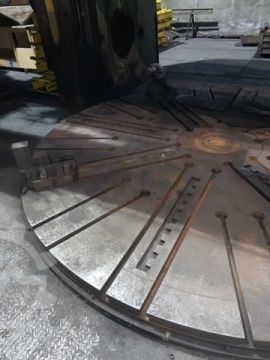

Clamping plate diameter mm 3 750
Max. turning diameter by cross beam mm 4 200
Stpa30
Max. height of cross beam above clamping plate mm 2 550
Max. turning height with cross beam mm 2,500
Max workpiece weight kg 40 000
Maximum torque on clamping plate kgcm 180 000
Maximum cutting force to a diameter of 2400 mm at a cutting speed of 15 m / min kg 15,000
Largest cross-section of chip at rated motor power
– for steel strength 60 kg / mm2, Ks = 150 kg / mm2, h = 15m / min mm2 100
– for cast iron 200 ° Brinella, Ks = 150 kg / mm2, h = 15m / min mm2 200
Knife cross section mm 50×60
Number of knives in holder 1
Number of slide supports 2
side 1
Dimensions of T-slots in clamping plate – width mm 56
Hole in cross slide slide for cutter head – metric taper mm 120
(In the side slide, the cutter head is formed directly in the slide.)
Clearance between stands mm 4 200
Oblique distance from center of table to rack edge mm 2 170
Distance from the center of the table to the knife holder at the side slide
• not more than mm 2 050
• at least mm 800
Max. height of side support knife holder above clamping plate mm 2 100
Max. immersion of the slide slide below the clamping plate level approx. mm 240
Minimum diameter of clamping in jaws mm 525
Largest jaw clamping diameter mm 3,565
Cross stroke mm 2 250
Crosshead adjustment speed mm / min 500
Tilting the slides ie. Tilt the blade away from the perpendicular
• to center 30 °
• from center 30 °
Cross slide slide travel mm 1400
Horizontal movement of side slide slide mm 1 250
Horizontal movement of cross beams from the center of the machine to the center of the slide – mm -20
Limit positions + mm + 2 470
Vertical movement of the side support from the lowest position under the clamping plate mm 2 465
Number of revolutions of the clamping plate, with continuous regulation of unloaded machine
I. Speed ​​rpm 0.44 – 1.95
II. Speed ​​rpm 1.50 – 6.65
III. Speed ​​rpm 5.05 – 22.5
Control range at constant power 1: 3.5
Number of travels of cross beams 14
Number of lateral slide displacements 14
Cross slide size:
mm / rev 0.25
mm / rev 0.50
mm / rev 1.0
mm / rev 2.0
mm / rev 4.0
mm / rev 8.0
mm / rev 16.0
By replacing the two spur gears in the drive housing, a fine feed is achieved
(Half ie from 0.125 mm / rev gradually to 11.2 mm / rev)
Side slide displacement mm / rev 0.25
mm / rev 0.50
mm / rev 1.0
mm / rev 2.0
mm / rev 4.0
mm / rev 8.0
mm / rev 16.0
By replacing the two spur gears in the drive housing, a fine feed is achieved
(Half ie from 0.125 mm / rev gradually to 11.2 mm / rev)
Rapid traverse vertical I horizontal cross beams mm / min 1200
Rapid traverse Vertical horizontal slide mm / min 1200
Manual feed of handwheel
Horizontal cross beams mm / rev 1
Slide slide mm / rev 2
Vertical and horizontal side support mm / rev 2
Machine weight kg 84 980
Weight of side support with balancing kg 10 500
Weight of the device with replaceable wheels for threading
and taper turning in a column design kg 350
Replacement Wheels for Whitworth Thread Cutting kg 30
One pair of fine feed wheels
Adding side support for bridging
device for turning cones into the right support kg 60
Ground area of ​​the whole machine mm 106 000 x 7 800
Floor area Ward-Leonard mm 960 x 2,430
Ground area of ​​contactor cabinet mm 930 x 2 030
Total height of machine above floor mm 6 920
Dismount height mm 9 220
Required height from floor to center of crane hook mm 9 700
Recessed Depth of Floor Bed mm 980

Machine Data

Machine IDWM228985
Vertical lathe SK 40
Machine typeCarousels
ModelVertical lathe SK 40
Year of manufacture1957
Conditionready for operation (used)

Price and Location

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
