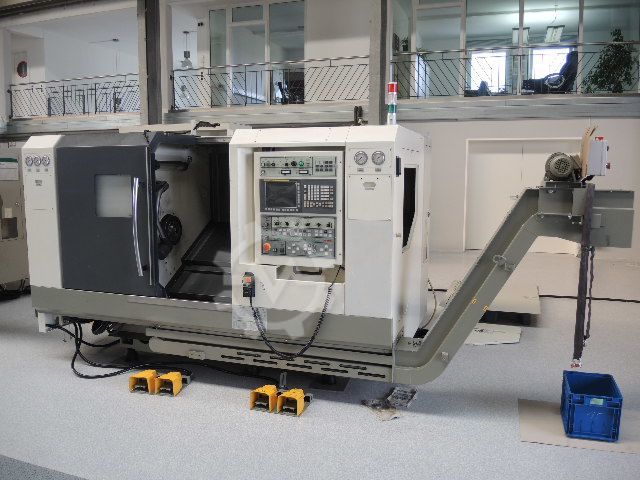

Victor A 20 SCM cnc lathe

Tags : , , ,
Posted By :
Comments : 0

turning dia. 330 mm
turning length 600 mm
bar dia. 52 mm
subspindle movement 550 mm
main spindle:
spindle speeds 5000 rpm
spindle drive 15/11 KW
torque 324/238 Nm

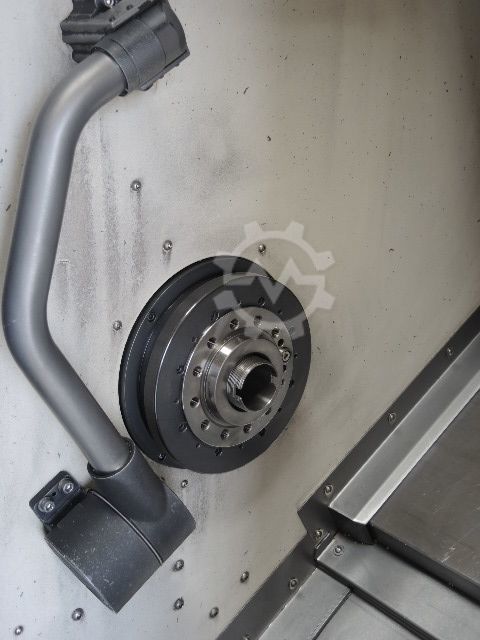

sub spindle:
spindle speed 7000 rpm
spindle drive 15/10 KW
torque 97,3/63 Nm
X – axis 135+115 mm
Z – axis 600 mm
rapid travel 24/24 m/min,

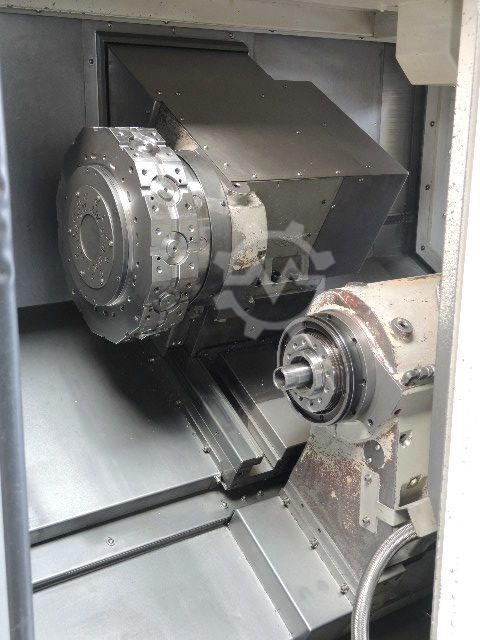

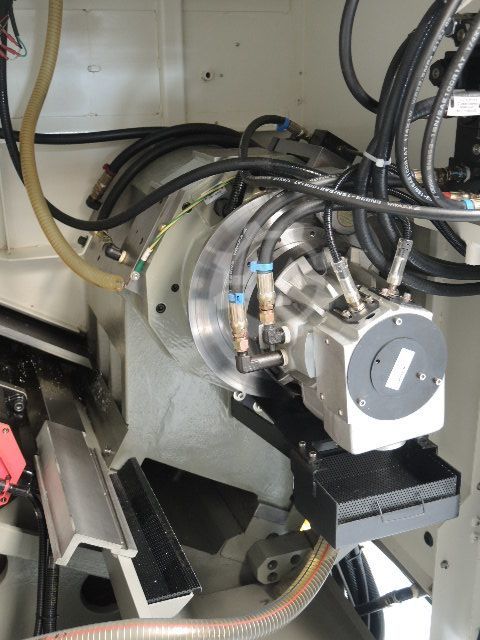

turret:
no. of live stations 12
tool taper 55 BMT
tool drive 4,5 KW
torque 22 Nm
machine weight 5,8 to
floor space 4,352 x 1,750 x 1,850 m

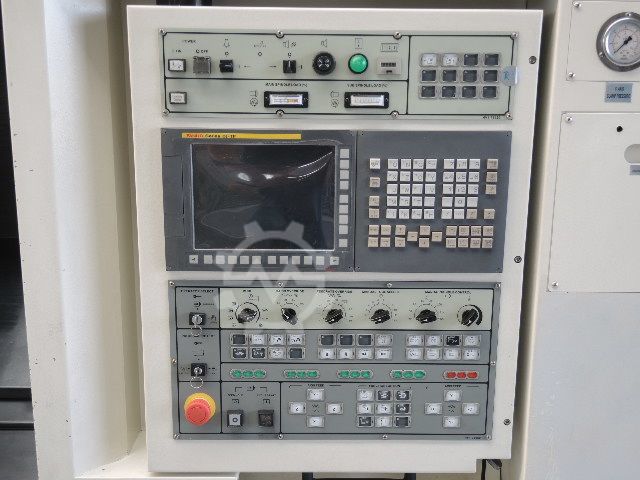

* CNC FANUC Oi-TD
* main- und subspindle
* DDS – direct drive
* C – Axis main- and subspindle
* tool setter automatic swiveling
* SAUTER 12-position revolver
* Internal cooling14 bar
* Automatic doors
* Central lubrication system
* Electrical interface PROFIBUS for robotic
* Cooling control
* Oil absorber
* Chip conveyor
Bfibfxkcf9

Machine Data

Machine IDWM227135
Victor A 20 SCM
Machine typecnc lathe
ManufacturerVictor
ModelA 20 SCM
Year of manufacture2016
Conditiongood (used)

Price and Location

LocationEngelskirchen , Germany

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
