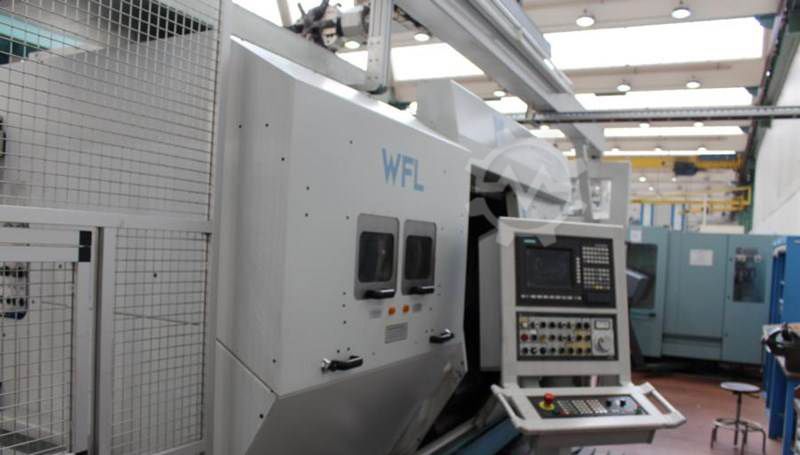

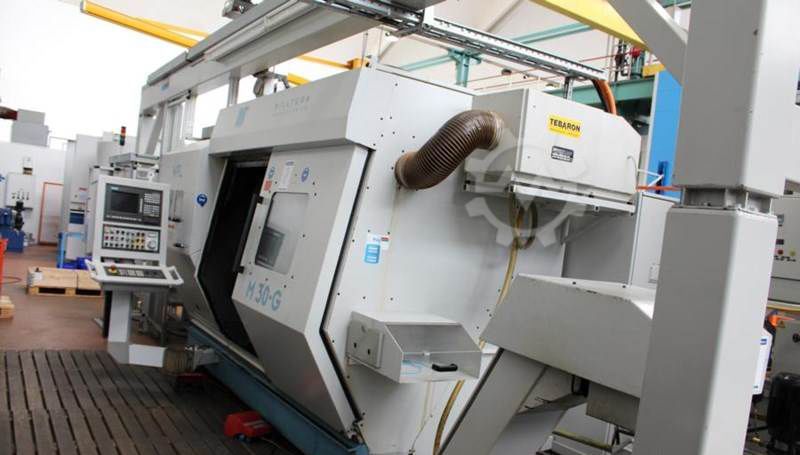

CNC turning-milling centre WFL MILLTURN M30 G x 1000
Etm7w29zm
counter spindle, driven tools, axis Y, axis B, milling head
Year of construction: 2003
Country of origin: Austria
turning diameter: 300 mm
turning diameter above the bed: 520 mm
turning length: 1 000 mm
feed axis Z: 1 120 mm
feed axis W: 940 mm
feed axis X: 420 mm
feed axis U: 185 mm
spindle passage: 77 mm
LEFT MAIN DRIVE:
spindle speed: 4 000 rpm
Main engine power: 37 kW
MAIN DRIVE ON THE RIGHT:
spindle speed: 5 000 rpm
Main engine power: 22 kW
WOMAN’S HEAD:
Spindle speed: 4 000 rpm
feed axis Y: +80/-80 mm
feed axis B: +/- 90°
Tool holder: CAPTO C4
Tool magazine:

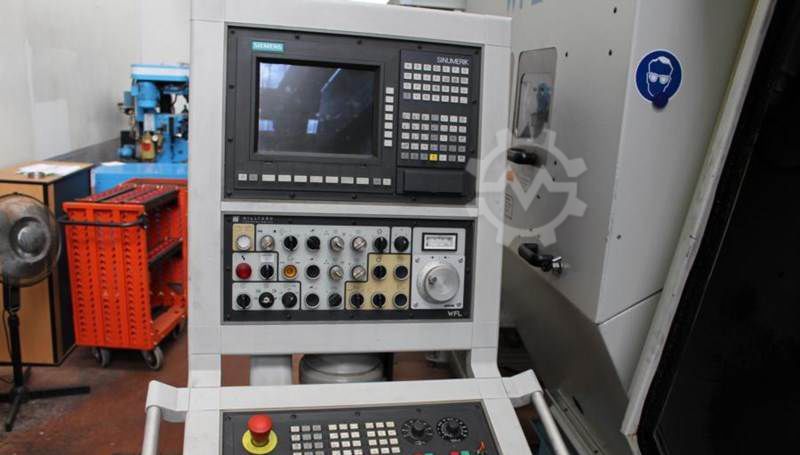

Control: CNC SIEMENS 840 C
The advertisement was translated automatically and some translation errors may have occurred.
