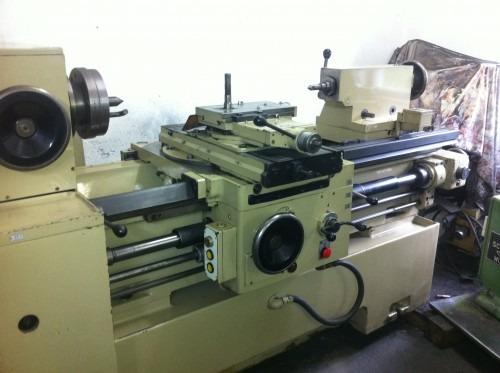

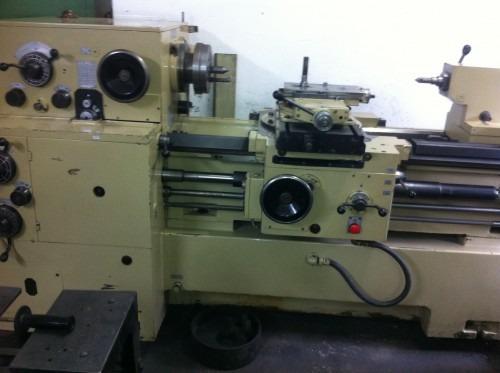

WMW NILES DH 250 III Drehlaenge 630 mm Behind lathe

Posted By :
Comments : 0

Behind lathe Fabr. WMW NILES Type DH 250 III Year 1989 apparently never used !!! Specifications: Swing over rear swivel slide 250 mm Height of centers over rear swivel slide 138 mm Height of centers over bed 270 mm turning length 630 mm center distance 900 mm spindle taper DIN 55021/8 spindle bore 26 mm pivot area of ​​the rear rotary carriage 360 ​​swivel range of the cross slide 360 ​​tool quick retreat 25 mm area of ​​the Hinterdrehhubes infinitely 0 – 32 mm speeds infinitely variable from 1.8 to 450 rpm. 6 speeds for accelerated return of the slide bed 23 -. 740 rpm. 12 longitudinal feeds from 0.063 to 0.63 mm / rev. Metric thread pitches. 0.25 to 10 mm inch 1/100 – 1 Module 0.25 to 4.0 mm DP 80-7 U / 1 area of ​​the chip groove pitch 100 to 20,000 mm metric. 50-1250 mm Motor power 5,5 kW weight of about 3.4 t outside dimensions approx 3250 x 1350 x 1550 mm with – grinding Support – 187 change gears in very good condition (apparently never used)

Machine Data

Machine IDWM85813
WMW NILES DH 250 III (Drehlaenge 630 mm)
Machine typeBehind lathe
ManufacturerWMW NILES
ModelDH 250 III (Drehlaenge 630 mm)
Year of manufacture1989
ConditionUsed machine

Price and Location

LocationD - Hessen

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
