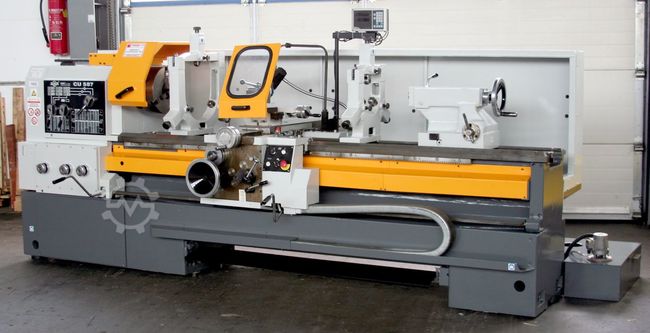

ZMM CU 587 Center lathe

Tags : , , ,
Posted By :
Comments : 0

turning diameter over bed 580 mm
centre distance 2000 mm
Delivery time approx. 1 week from order placement
turning diameter over bed: 580 mm
turning diameter over support: 380 mm
centre distance: 2.000 mm
spindle bore: 82 mm
bed width: 450 mm
Tailstock taper: MK 5 Ø
Travel of the tailstock sleeve: 150 mm
Bjvwegpqyb
feed lengthwise: 0.025 – 12 mm/r
Feed rate flat: 0.0125 – 6 mm/r

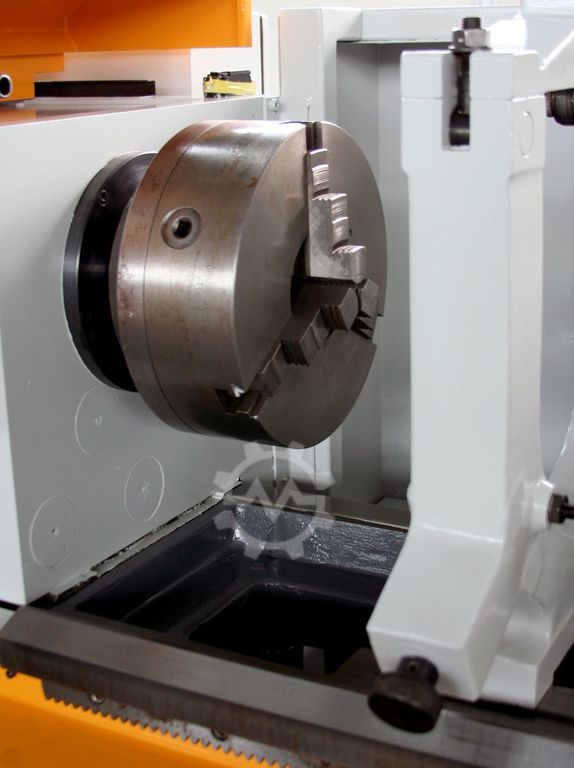

3-jaw chuck Ø: 320 mm
4-jaw chuck Ø: 310 mm
4 jaw face plates Ø: 500 mm
1 jaw face plate Ø: 350 mm

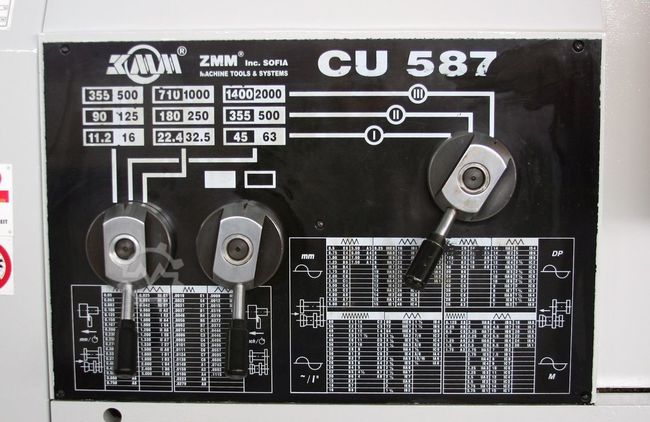

Speeds: 11.2 – 2,000 rpm. (16)
Main engine: 11 kW
Length: 4,805 mm
Width: 1.620 mm
Height: 1.430 mm
Weight: 4.710 kg

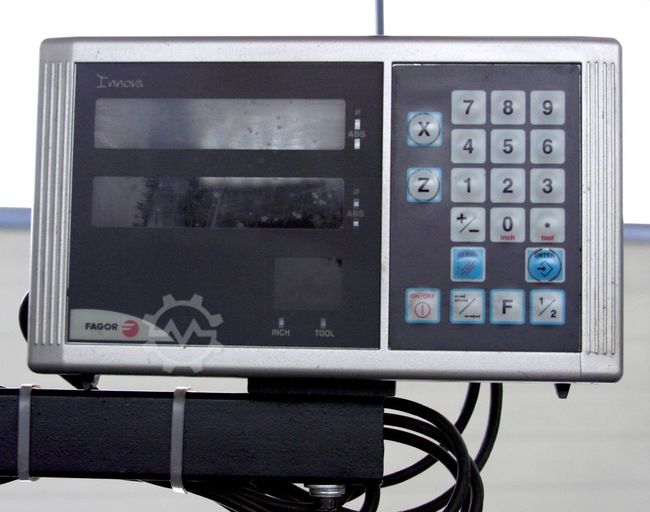

without bridge2-axis digital readout Fagor Innova 20i-T for X,YQuick change toolholder with rotating Lynette small and large vertical Lynette coolant pumpMachine lampRotating speed long and flatOperating instructions in GermanComplies with the German UVV & Austrian AMVO
The advertisement was translated automatically and some translation errors may have occurred.

Machine Data

Machine IDWM235744
ZMM CU 587
Machine typeCenter lathe
ManufacturerZMM
ModelCU 587
Year of manufacture2003
Conditionready for operation (used)

Price and Location

Price29.2600
Currency

Seller

Yusuf Topcu
Company NameCNC.ist
Authorized PersonYusuf Topcu
Websitewww.cnc.ist
Phone+905324419163
Mobile Phone+905324419163
