Pressing force 250 to
Table 1.120×785 mm
Delivery time prompt, intermediate sale reserved
Pressing force: 250 to
Table: 1,120 x 785 mm
Clutch: electro-pneumatic clutch-brake combination

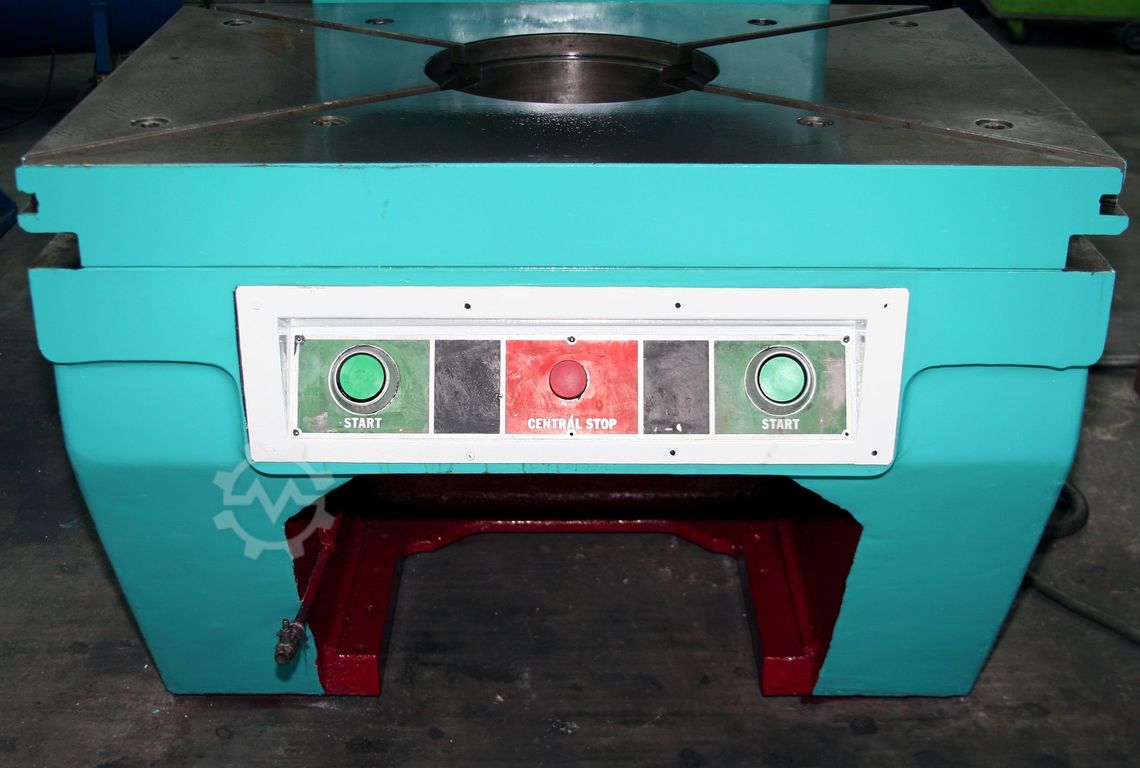

Triggering: 2-hand
Stroke: 30 – 140 mm
Extension: 400 mm
Installation height: 360 mm
Impact completion: 110 mm
Encykxb
maximum stroke number: 45 rpm.
usable stroke number: 25 rpm.
Pestle: 800 x 475 mm
Clamping opening in the pestle: 65 H7/ 100/155 mm
Diarrhoea hole: 320 mm H7
Clamping plate: 115 mm
Engine: 22.0 kW
Length: 1.350 mm
Width: 2.580 mm
Height: 2.975 mm
Weight: 12,800 kg
fixed table manual stroke adjustment Impact completion by ratchet/ratchet electro-pneumatic clutch-brake combination single and continuous strokeOperating instructions in ENGLISHDoes not comply with the German UVV & Austrian AMVO
The advertisement was translated automatically and some translation errors may have occurred.
