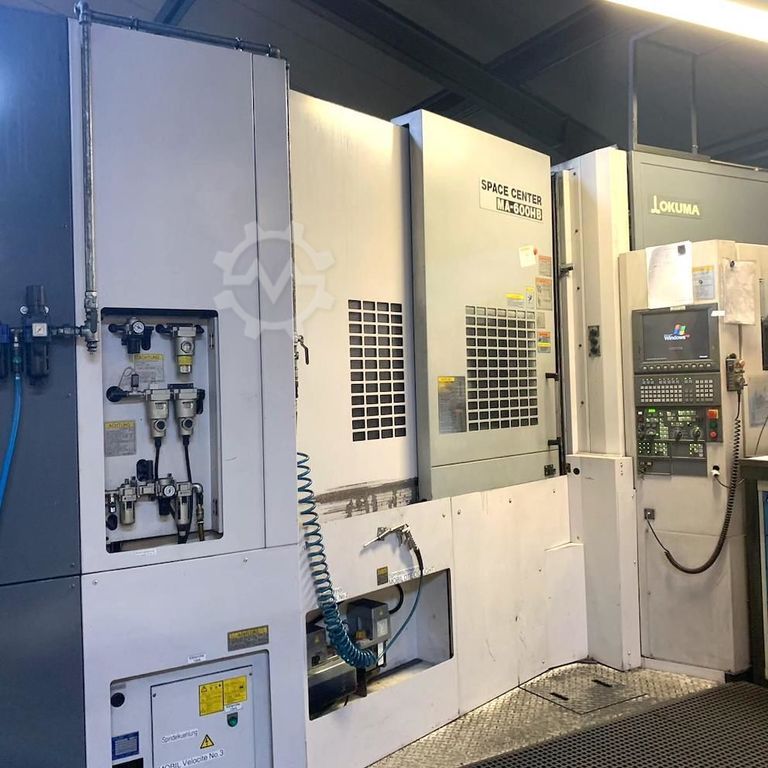

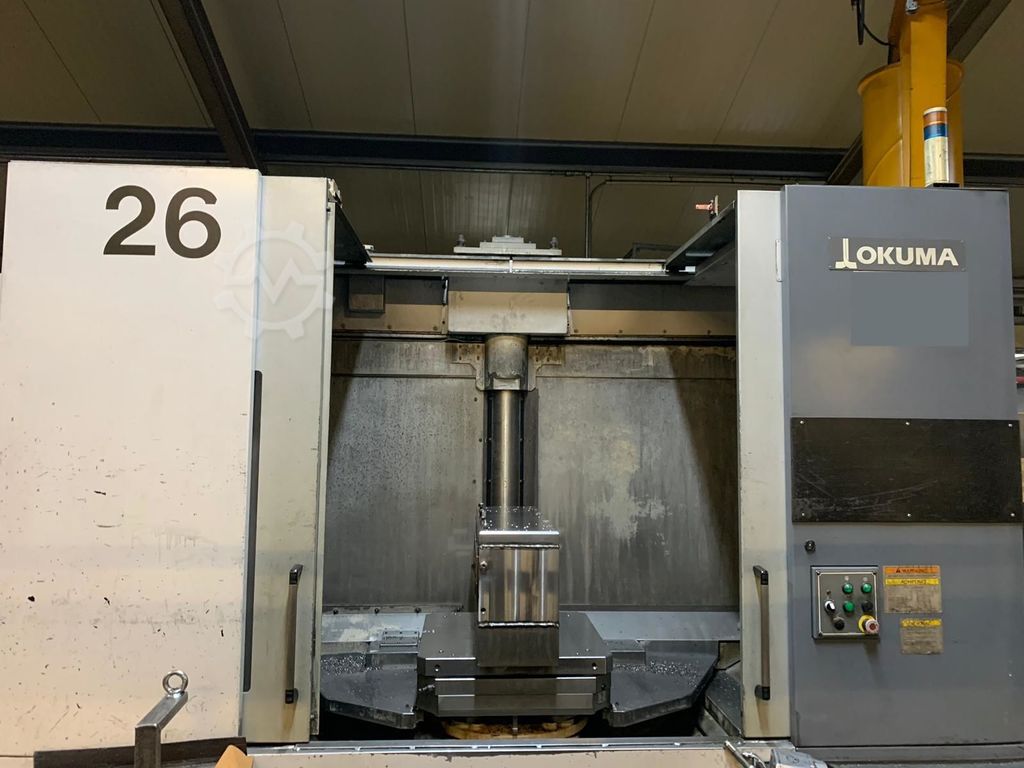

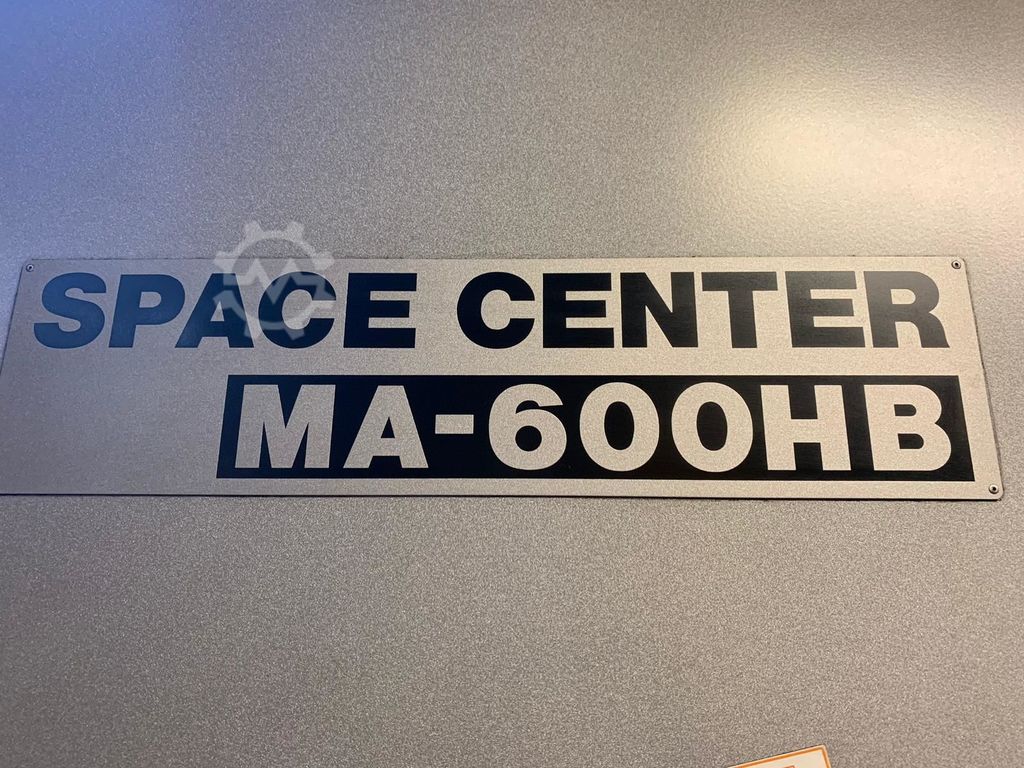

OKUMA MA 600 HB 194 Horizontal Center Machine
You can explore similar available equipment below or submit an enquiry to receive alert notifications.
| Manufacturer | OKUMA |
|---|---|
| Model | MA - 600 HB - 194 |
| Year of Manufacture | Not Specified |
| Condition | Used Machinery |
| Hours of Operation | Not Specified |
| Serial Number | Available on Request |
|---|---|
| Location | Italia |
| Category | Metal processing machines |
| Reference ID | #WM-1348 |
| Listing Published | 03 January 2022 |

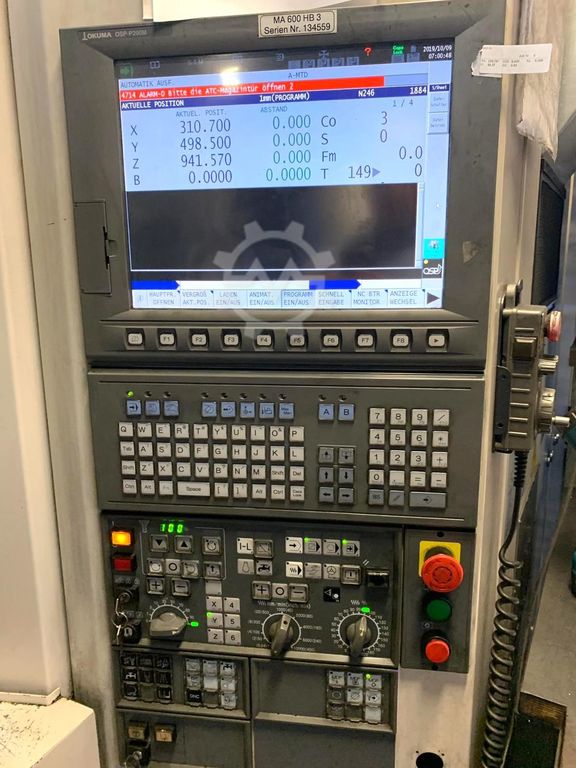

Control: OKUMA OSP-P200M
Bhqkgzcvxh
Axes
X-axis travel mm: 1.000
Y-axis travel mm: 900
Z-axis travel mm: 1.000
B-axis smallest division: 1 degree
Palette
Dimensions mm: 630 x 630
Workpiece weight max. kg: 1.200
Spindle
Spindle speed rpm: 6.000
Spindle drive power kW: 30
Torque Nm: 606
Tooling System
Tool holder: MAS-BT50
Tool magazine: Chain
Tool Magazine Stations: 200
Tool changer: double gripper
Equipment
Chip conveyor in the workroom
Chip conveyor MAYFRAN Consep 2000 / volume 1.000liter
Coolant shower in the workroom
Coolant supply through the spindle
Nozzles for external cooling
Air through the spindle
Nozzles for external cooling
Removable electronic handwheel
Renishaw tool length measurement and breakage detection
Renishaw workpiece measurement
Direct, absolute path measuring system in all axes
Synchronized tapping up to the maximum spindle speed
Load monitoring during drilling and tapping
Replacement tool management
Tool life monitoring
Parameters and variable programming
RS232 interface
Additional operating system Windows
CE conformity
manuals
Machine running times
Spindle hrs: approx.15.000
Basic machine dimensions / weight
Length mm: 6,500
Width mm: 3,400
Height mm: 3,300
Weight kg: approx. 26,000
